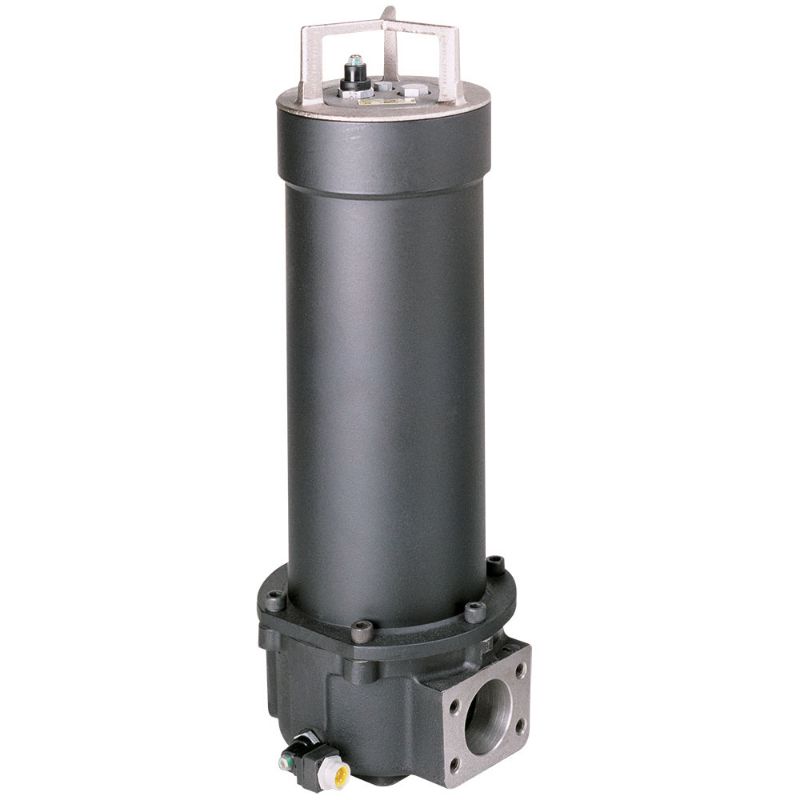

Parker IL82R10QEPP50ZZ1 - Medium Pressure Inline Filter IL8 Series

Parker's IL8 Inline Filters combines high efficiency Quantumfiber filtration with low cost installation. Allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 425 GPM/1609 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IL82R10QEPP50ZZ1

$3,893.96

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	50 lb
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	None
Filter Element Type	Cartridge	Pressure Rating	500
Maximum Operating Temperature	225.0 °F	Product Style	Hydraulic Filter
Mounting Style	Inline	Indicator Pressure Setting	50 psid
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258	Flow Rate	200.0 Gal/min
Port Type	SAE 2 1/2 inch flange face	Indicator Type	no pressure port, indicator/port only
Housing Material	bowl - low carbon steel; cover - anodized aluminum	Compatible Element	933836Q
Micron Rating	10QE Microglass	Bypass Valve Pressure Rating	50 psid
Seal Material	Nitrile	Options	None
Bypass Valve Pressure Rating	50 psi (3.4 bar)	Micron Rating	10QE microglass
Flow Rate	200 gpm (757 lpm)	Indicator Type	no pressure port, indicator/port only
Port Connection Type	SAE 2 1/2 inch flange face
