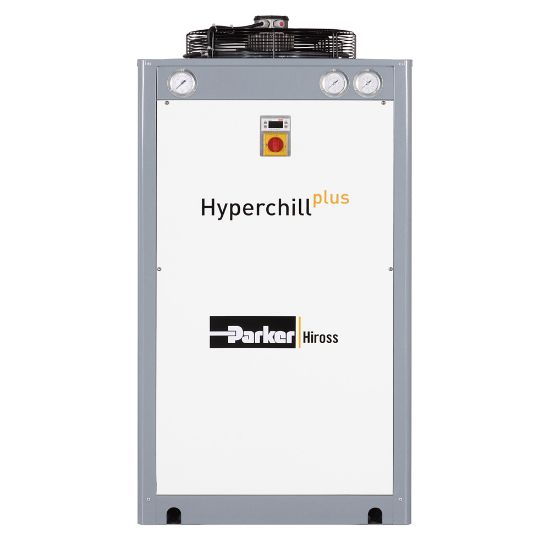

Parker ICEP003-WASP3TC000001 - Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ICEP003-WASP3TC000001

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Port Size	3/4 inch	For Fluid Type	Water
Industry	Food & Beverage	Brand	Hiross
Refrigerant Type	R407c	Operating Temperature	41 to 86 °F
Product Style	Pressurized Closed Hydraulic Circuit	Product Type	Production Process Water Chiller
Specifications Met	Electromagnetic Directive 2004/108/EC	Technology	Thermal and Power Management
Port Type	Threaded	Application	Precision Cooling of Low Viscosity Industrial Cooling Fluids
Depth	21.1 inch	Width	29.7 inch
Height	31.5 inch	Tank Capacity	15 L
Product Series	Hyperchill Plus	Ambient Temperature	118.4
Compressor Included	Hermetic Piston	Number of Axial Fans	1
Weight	80 kg	Ingress Protection Rating	IP33
Pump Type	Single Pump 3 bar	Cooling Method	Air Cooled / Axial Fans
Water Sensor Option	No Low Water	Additional Protection Included	Without Antifreeze
Output Water Temperature Range	Close Control +/- 0.5°C	Options	No Options Selected
Hydraulic Circuit	With Tank	Operating Environment	No Low Ambient
Kit Type	Ambient Manual Fill Kit	Power Supply Voltage	230V/1Ph/50Hz
Maximum Cooling Capacity	3.3 kW @ 25°C (63°F)
