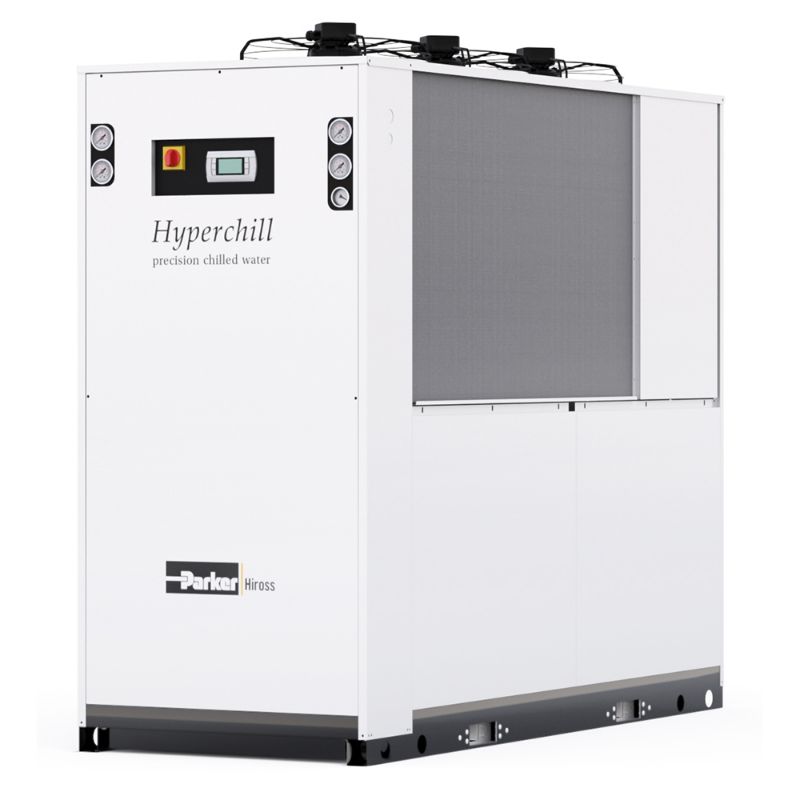

Parker ICE076A4003500000FF000000 - Hyperchill - Industrial Process Chillers for Precision Cooling

Chillers designed to provide precise and accurate temperature control for a wide variety of industrial applications, with cooling capacities from 76 kW to 360 kW @ 25°C ambient temperature.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ICE076A4003500000FF000000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Port Size	2 inch
Ingress Protection Rating	IP54	Refrigerant Type	R407c
Weight	800 kg	Height	1984 mm
Product Style	Pressurized Closed Hydraulic Circuit	Depth	86.6 inch
Product Type	Production Process Water Chiller	Specifications Met	Machinery Directive 2006/42/EC
Technology	Thermal and Power Management	Noise Level	58 dBA
Number of Axial Fans	3	Width	1500 mm
Industry	Plastics	Port Type	Threaded
Application	Precision Cooling of Low Viscosity Industrial Cooling Fluids	Tank Capacity	500 L
Product Series	Hyperchill	Compressor Included	Hermetic Scroll Compressor
Pump Type	No Pump	Cooling Method	Air Cooled / Axial Fans
Water Sensor Option	No Low Water	Power Supply Voltage	400V/3Ph/50Hz
Maximum Cooling Capacity	76.0 kW @ 25°C (63°F)	Additional Protection Included	Without Antifreeze
Hydraulic Circuit	With Tank	Operating Environment	No Low Ambient
Output Water Temperature Range	Without Close Control
