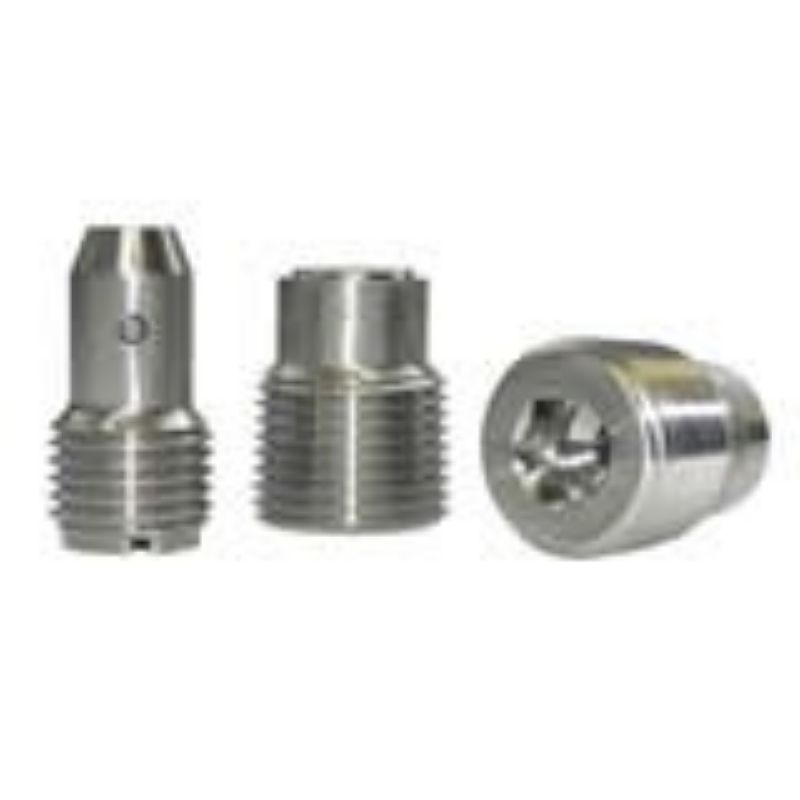

Parker IC10N2-80 - Wellhead Grease Fittings, Internal Check Series

Parker PGI’s Internal Check Wellhead Grease Fittings are available in single and double ball designs with tapered or straight threads for service to 10,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IC10N2-80

$48.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Instrumentation Products Division
Maximum Operating Pressure	689 bar	Plating Type	Zinc
Ball Material	K-Monel®	Body Material	Steel AISI 4140
Heat Treatment	Rc 22 Max (NACE)	Connection Size	NPT inch Thread
Materials of Construction	Inconel X-750 (Spring)	Length	3/4 inch
Product Style	Single Ball Check - Soft Seat - Spring Biased	Connection Thread Size	1/4" NPT
Body Material	4140	Product Style	Single Ball Check - Spring Biased

Product resources

PGI-WF

Wellhead Fittings & Valve Components (PDF)
