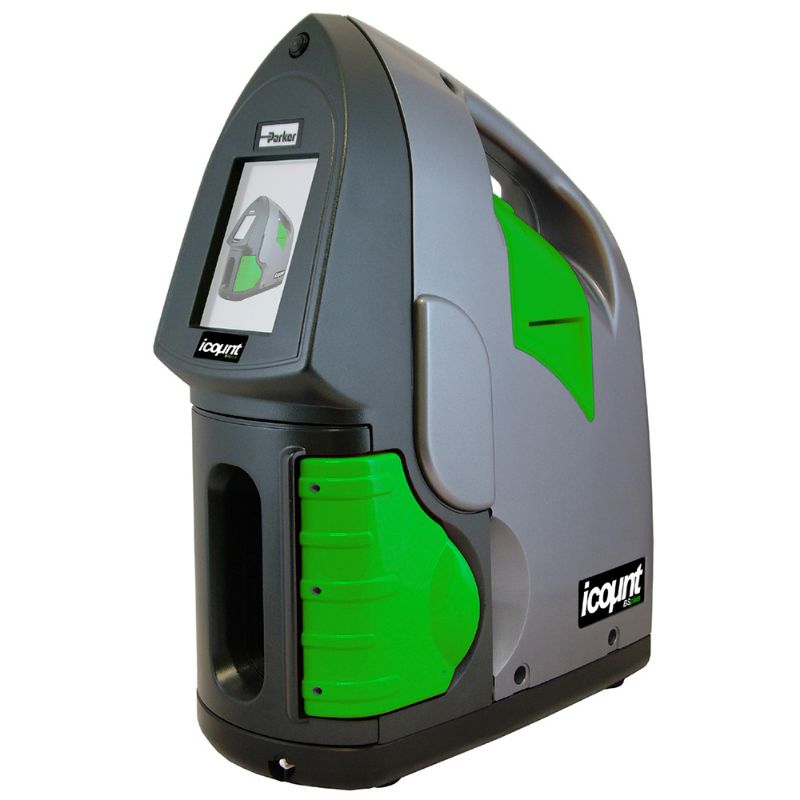

Parker IBS4100 - IcountBSwg - Bottle Sampler for Water Glycols

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IBS4100

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	410 mm	Industry	Oil and Gas
Technology	Filtration	Maximum Fluid Temperature	n/a
Port Type	N/A	Operating Humidity	2 to 80% RH
Sensing Method	Relative Humidity	Operating Temperature	10 to 40 °C
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
For Fluid Type	Erifon HD603HP & Erifon 818 Castrol - Transaqua range	Accuracy	< 7 %
Options	Full De-gas Kit	Brand	Parker
Seal Material	Fluoroelastomer	Static Memory Option	500
Weight	18 kg	Product Style	Particle Detector/Counter
Body Material	Stainless Steel	Product Type	Condition Monitor
Width	210 mm	Specifications Met	CE Certification
Electrical Requirements	110 to 240 VAC	Calibration Type	MTD
Communication Interface	USB Port	Height	530 mm
Minimum Fluid Temperature	n/a	Flow Rate	60 L/min
Operating Pressure	3 bar	Maximum Operating Temperature	30 °C
Cycle Time	< 5 min	Port Size	n/a
Options	full de-gas kit

Product resources

Literature and Reference Materials

BROCHURE-icountBSplus-Bottle-Sampler-for-Water-Glycol (PDF)

Compliance, Certifications & Safety

SAFETY-iCountBS-Declaration-of-Conformity (PDF)
