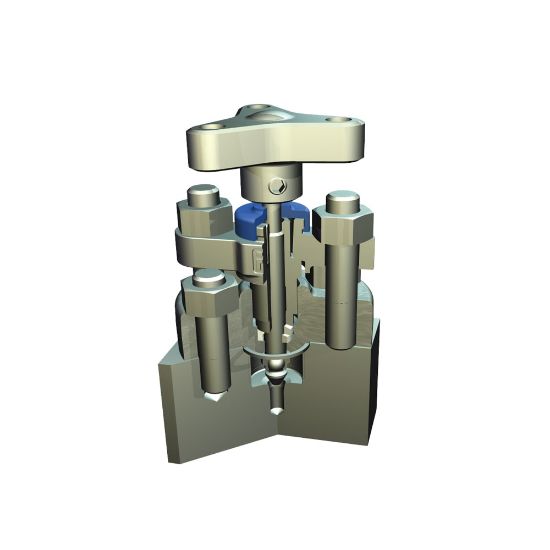

Picture of Parker HYNVHC8M8F - Needle Valve (6,000 PSI) - HYNV Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HYNVHC8M8F - Needle Valve (6,000 PSI) - HYNV Series

Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HYNVHC8M8F
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Product SeriesHYNVMaterials of ConstructionHasteloy
Outlet Port TypeFemaleMounting OptionBase mount
Flow Coefficient 10.35 standardPacking MaterialGraphite
Maximum Operating Pressure414Inlet Connection Size1/2 NPT
Outlet Connection Size1/2 NPTSeat MaterialMetal/metal seated
Minimum Operating Temperature-65Maximum Operating Temperature1000
Inlet Port SizeMaleDivisionInstrumentation Products Division
Additional OptionsFor other options contact factoryOutlet Connection1/2 NPT
Inlet Port Connection TypeMaleInlet Connection1/2 NPT
MaterialHasteloyOutlet Port Connection TypeFemale
