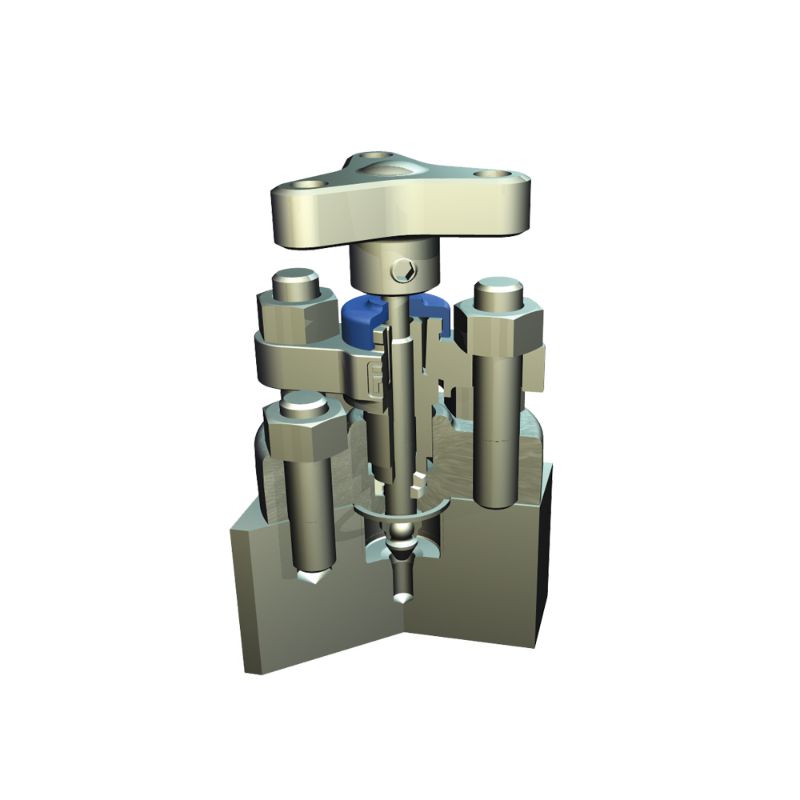

Parker HYNV6MO4FF - Needle Valve (6,000 PSI) - HYNV Series

Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HYNV6MO4FF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outlet Connection Size	1/4 NPT	Mounting Option	Base mount
Packing Material	Graphite	Inlet Port Size	Female
Maximum Operating Pressure	414	Materials of Construction	6Mo
Seat Material	Metal/metal seated	Minimum Operating Temperature	-65
Maximum Operating Temperature	1000	Division	Instrumentation Products Division
Additional Options	For other options contact factory	Inlet Connection Size	1/4 NPT
Product Series	HYNV	Outlet Port Type	Female
Flow Coefficient 1	0.35 standard	Material	6Mo
Inlet Connection	1/4 NPT	Outlet Connection	1/4 NPT
Outlet Port Connection Type	Female	Inlet Port Connection Type	Female
