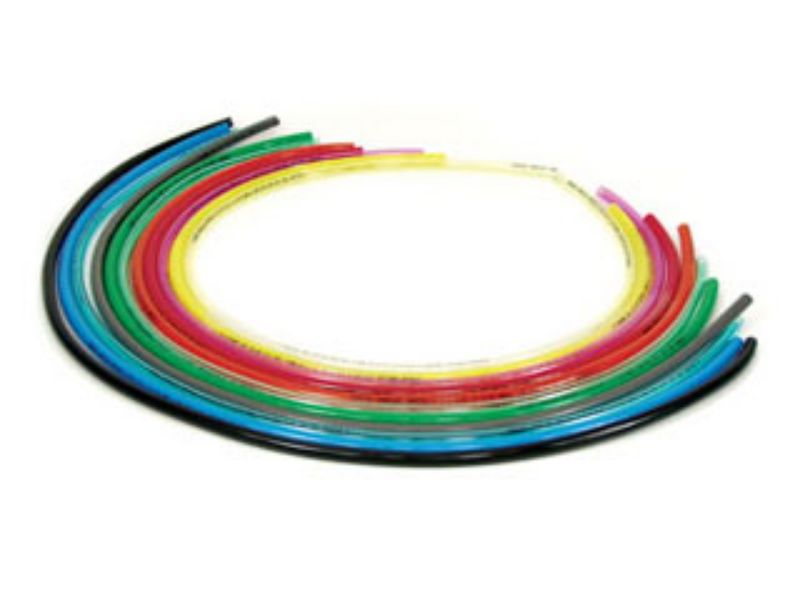

Parker HU-6-0100 - HU Series Polyurethane

Parflex High Durometer Polyurethane

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HU-6-0100

Products specifications

Attribute name	Attribute value
Inner Diameter	0.251 Inch	Wall Thickness	0.062 Inch
Pkg Qty/UOM	100 FT	Pkg Qty	100
UOM	FT	Outer Diameter 1	3/8 Inch
Max Pressure	180 PSI (12 bar)	Material	Polyurethane
Color	Natural	Wall Thickness Inch/mm	Inch
Inch/Metric	Inch	Parker Division	Parflex
Color	Natural	Parker Group	Fluid Connector
Trade Name	Parflex	Inner Diameter	0.251 Inch
Distinct Properties	High Durometer	Max Pressure Range	100 to 249 PSI (7 to 17 bar)
Outer Diameter Inch/mm	Inch	Series	HU
Inner Diameter Inch/mm	Inch	Outer Diameter	3/8 Inch
Material	Polyurethane	Application	Pneumatic
Wall Thickness	0.062 Inch

Product resources

About Parker Parflex (PDF)
General Technical (PDF)
Thermoplastic Tubing (PDF)
