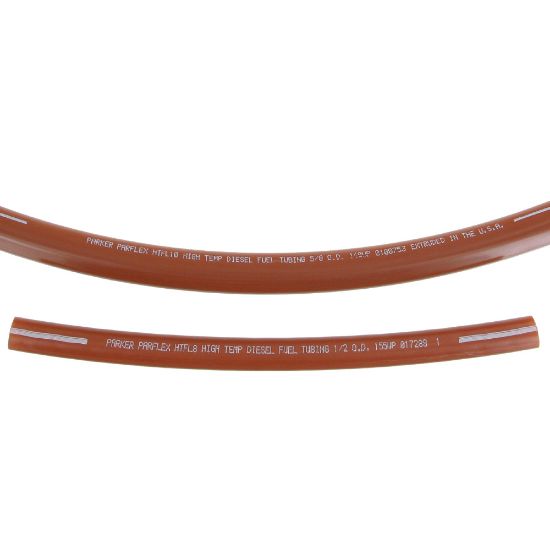

Parker HTFL-10B-BRN-250 - Diesel Fuel Tubing

Name: Parker HTFL-10B-BRN-250 - Diesel Fuel Tubing
SKU: HTFL-10B-BRN-250
Price: 6.92 USD
Availability: InStock

Parker's Nylon Diesel Fuel Tubing - HTFL & PFT diesel fuel line tubing is heat and light stabilized, quality controlled and pressure tested for superior performance.

AFP Availability:

96 In Stock

Norfolk, VA	63
Fayetteville, NC	33

Partner Available:

33 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. HTFL-10B-BRN-250

$6.92/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Specifications Met	MIL-DTL-83133 HTFL Tubing Compatible with JP-5 and JP-8
Product Type	High Temperature up to 266˚F (130˚C)	Minimum Bend Radius	2-7/8 inch
Application	Transportation	Cover Material	Polyamide (PA)
Tube Outside Diameter	16 mm	Tube Material	Polyamide (PA)
Length per Package	250 ft	Weight	0.106 kg/m
Maximum Operating Pressure	9.7 bar	Color	Brown
Tube Inside Diameter	0.441 inch	Cover Color	Brown
Division	Parflex Division	Maximum Operating Temperature	266 °F
Media	Fuels (Diesel)	Size	-10
Minimum Burst Pressure	900 psi	Compatible Fitting	NTA®
Minimum Operating Temperature	-50 °F	Order Size	5/8
Product Style	HTFL - Temp. up to 266˚F (130˚C)
