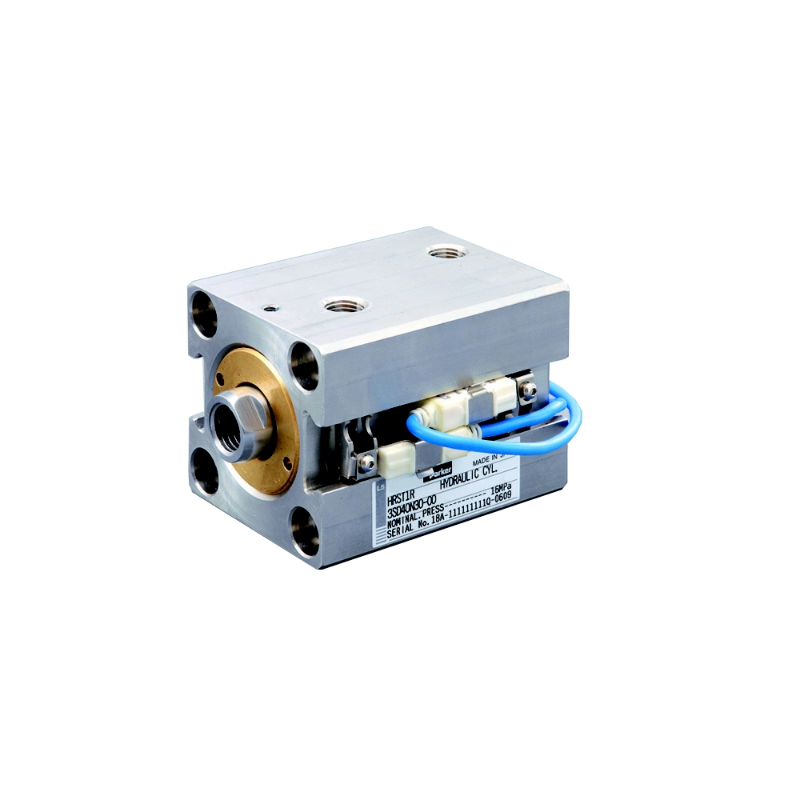

Parker HRST1R - 16MPa Heat Resisting Compact Hydraulic Cylinder Model:HRST1

HRST1 series of heat-resistant compact hydraulic cylinders for 16MPa that can be used up to an ambient temperature of 150 ℃. The bore size is φ32 to φ80.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HRST1R

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	TAIYO Division	Stroke Length Tolerance (mm)	0-+0.8
Fluid Type	Petroleum-based fluid and phosphate ester fluid	Nominal Pressure (MPa)	16
Cushioning Type	None	Minimum Operating Pressure (MPa)	0.3
Temperature Range (C)	-10-+130 (No freezing)	Body Material	Stainless Steel
Rod End Thread Type	Female thread and male thread	Mounting Style	SD,LD,FA,FB
Seal Material	3:FluorocarbonThe seal of cylinders with bores of 20 and 25mm is only HNBR ; 6:HNBR	Proof Pressure (MPa)	24
Bore Diameter (mm)	32, 40, 50, 63, 80	Maximum Working Pressure (MPa)	16
Speed Range	8-100mm/s	Sensor type	SW013
Type	Double Acting Single Rod, Switch set	Screw Tolerance	JIS 6g/6H
