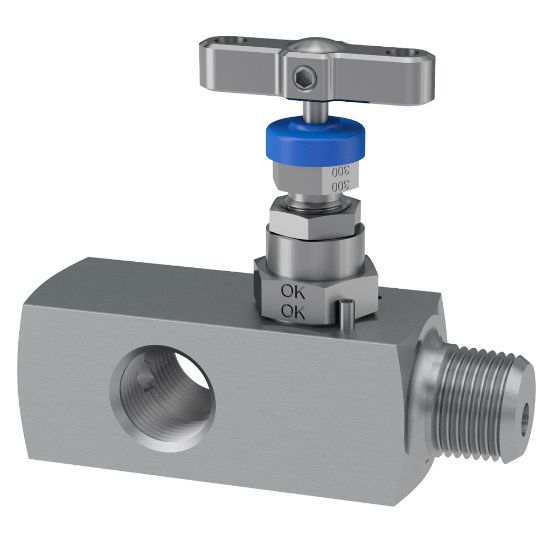

Parker HRPV4G6MO8M8F - Hand valves, Rising Plug – HRPV Series

Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HRPV4G6MO8M8F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Coefficient	1.8	Seat Material	PEEK
Packing Material	PTFE	Division	Instrumentation Products Division
For Fluid Type	General Gaseous and Liquid Media	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Operator Options: Anti-tamper, Handwheel, T Bar Locking
Operating Temperature	From -54°C to +204°C, From -65°F to +399°F	Orifice Size	6.4
Flow Direction	Straight	Operating Pressure	10000 PSI / 689 BAR
Mounting Option	N/A	Outlet Connection Size	1/2 Inch
Connection Type	NPT Female x 3	Body Material	6Mo
Inlet Connection Size	1/2 Inch	Options	n/a
Meets Certifications	N/A
