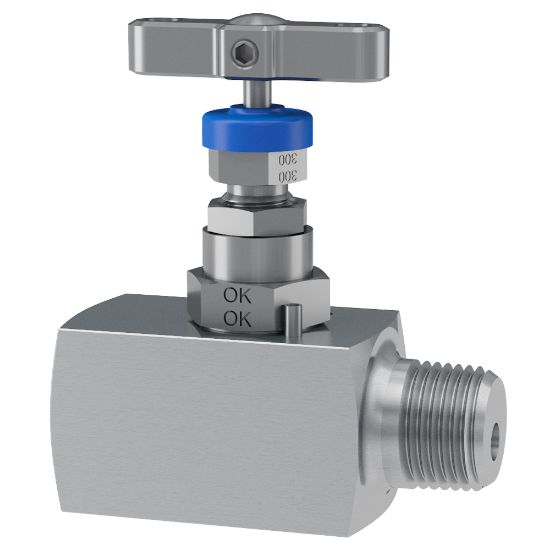

Parker HRPV46MO12M8FBMNC - Hand valves, Rising Plug – HRPV Series

Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HRPV46MO12M8FBMNC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Orifice Size	6.4	Flow Direction	Straight
Operating Pressure	10000 PSI / 689 BAR	Flow Coefficient	1.8
Seat Material	PEEK	Packing Material	PTFE
Division	Instrumentation Products Division	For Fluid Type	General Gaseous and Liquid Media
Operating Temperature	From -54°C to +204°C, From -65°F to +399°F	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Operator Options: Anti-tamper, Handwheel, T Bar Locking
Connection Type	NPT Female	Body Material	6Mo
Options	n/a	Inlet Connection Size	3/4 Inch
Mounting Option	Base Mount	Outlet Connection Size	1/2 Inch
Meets Certifications	NACE
