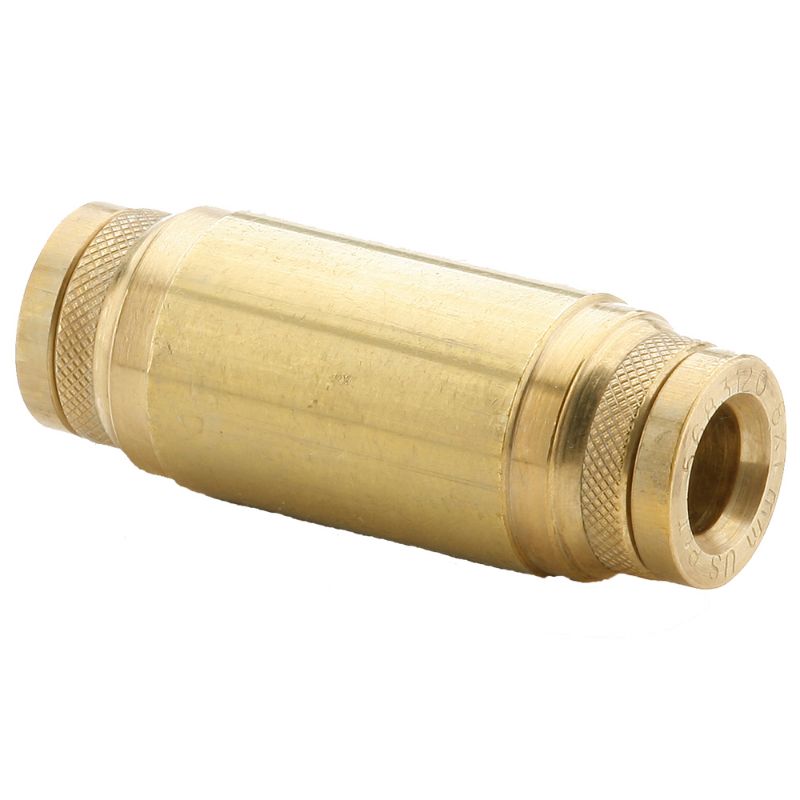

Parker HPMTB10 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HPMTB10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Temperature	200 °F
Application	Accessories	Technology	Fluid & Gas Handling
Materials of Construction	Brass (Collet)	Minimum Operating Temperature	-40 °C
Body Material	Brass	Configuration	Tube to Tube
Connection 2 Size	10 mm Tube O.D.	Tube Material	Stainless Steel
Connection 1 Size	10 mm Tube O.D.	Division	Fluid System Connectors Division
Maximum Operating Pressure	17 bar	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Shape	Union
Seal Material	Buna N (O-Ring)	Connection 3 Size	N/A
Specifications Met	DIN 74324	Brand	Parker
Connection 3 Size	N/A	Connection 1 Type	Push-to-Connect
Connection 1 Size	10 mm	Connection 2 Size	10 mm
Connection 3 Type	N/A	Product Style	Tube to Tube
Shape	Union	Connection 2 Type	Push-to-Connect

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
