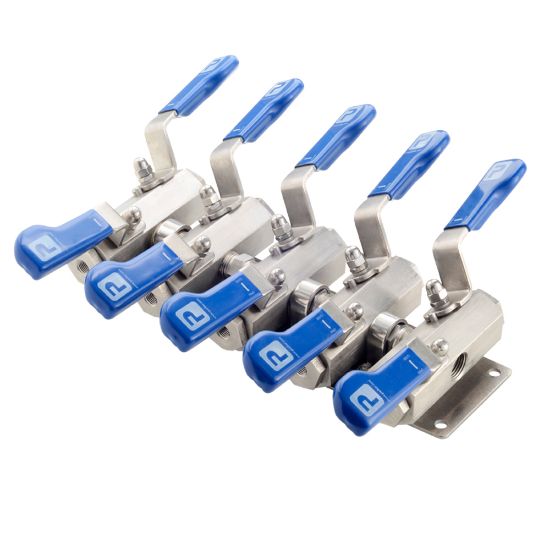

Parker HPDMB108K4KCP - Modular Hi-Pro Distribution Manifold

Parker’s Hi-Pro series air distribution manifolds are supplied as an interconnected assembly utilising Hi-Pro ball valves with two shut-off funcions in one body, mounted on a base plate.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HPDMB108K4KCP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seat Type	PEEK	Valve Port Size	1/4"
Division	Instrumentation Products Division	Connection 1 Thread Size	BSPT
Maximum Operating Pressure	6000	Drain Option	Plugged distribution outlet
Maximum Operating Temperature	232	Connection Type	BSPT
Number of Valves	10 Valve	Bore Diameter	10
Inlet Connection Size	1/2"	Seat Material	PTFE
Materials of Construction	AISI 316 Stainless Steel	Industry Application	Air Distribution
Minimum Operating Temperature	-54	Drain Option	Plugged distribution outlet
Valve Size (Inch)	1/4"	In/Out Connection	BSPT
Connection 1 Thread Style	BSPT	Manifold Type	10 Valve
Inlet Size (inch)	1/2"
