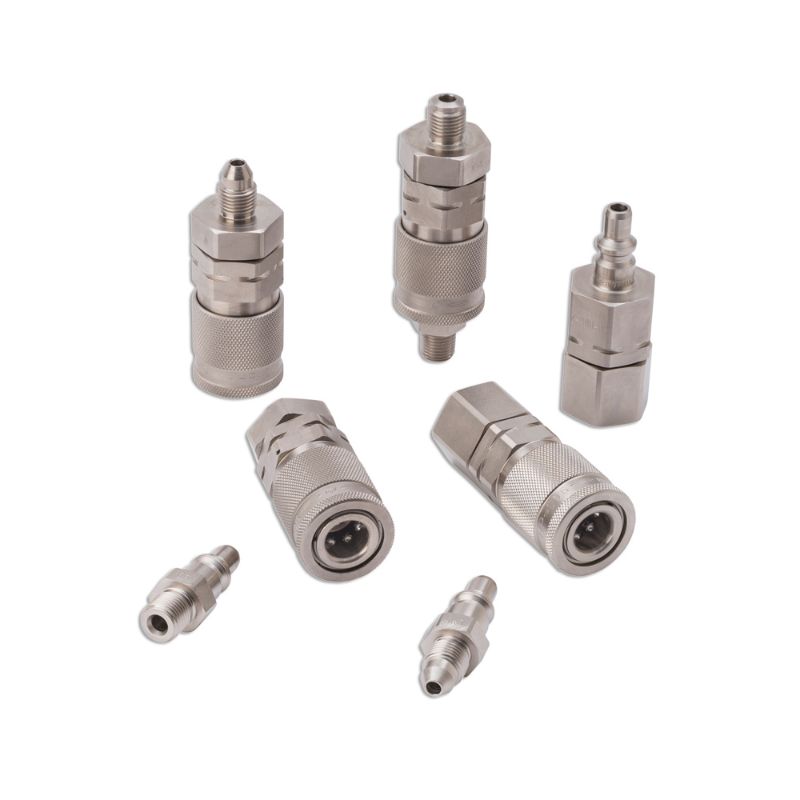

Parker HP006-1-NMC - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HP006-1-NMC

$379.69/each

Products specifications

Attribute name	Attribute value
Flow Diameter	0.24 inch	Connection Type	NPT
Division	Parflex Division	Connection Size	3/8"-18 inch
Coupling Half	Nipple without Check Valve	Maximum Operating Pressure	15000 psi
Materials of Construction	Alloy Steel	Overall Length	2.13 inch
Hex Size	19.05 mm	Body Material	Alloy Steel
Coupling Half	Nipple without Check Valve	Connection Size (inch)	3/8" - 18
Flow Diameter (inch)	0.24	Thread Type	Male
Connection Style	NPT
