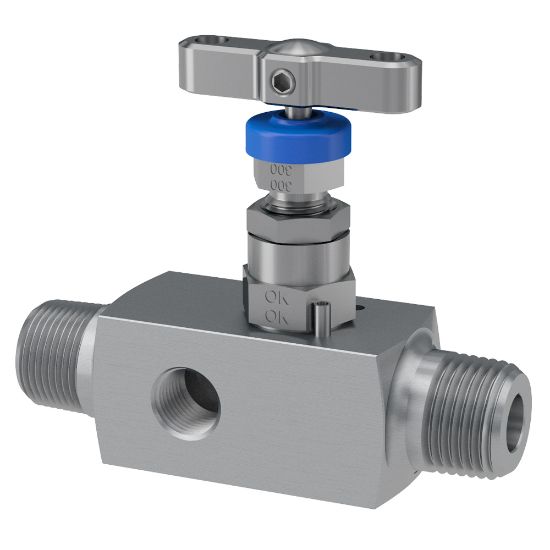

Picture of Parker HNVV6MO4MMHPP - Gauge Valves with Single Vent Port, Needle Pattern – H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HNVV6MO4MMHPP - Gauge Valves with Single Vent Port, Needle Pattern – H Series

Parker's bar stock gauge valves with single vent, designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HNVV6MO4MMHPP
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Vent TypeNPT FemaleDivisionInstrumentation Products Division
For Fluid TypeGeneral Gaseous and Liquid MediaOperating TemperaturePTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Seat MaterialMetal to MetalVent Size1/4
Flow Coefficient0.35Additional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld <br/>Seat options: 6mm Bore
Orifice Size4Additional Optionsn/a
Outlet Connection Size1/4 InchMounting OptionN/A
Outlet Port Connection TypeNPT MaleInlet Connection Size1/4 Inch
Inlet Port Connection TypeNPT MaleOptionsBlank Plug
Meets CertificationsN/ABody Material6Mo
Operating Pressure10000 PSI / 689 BARPacking MaterialPTFE
Product resources

Literature and Reference Materials

02-0142SE
