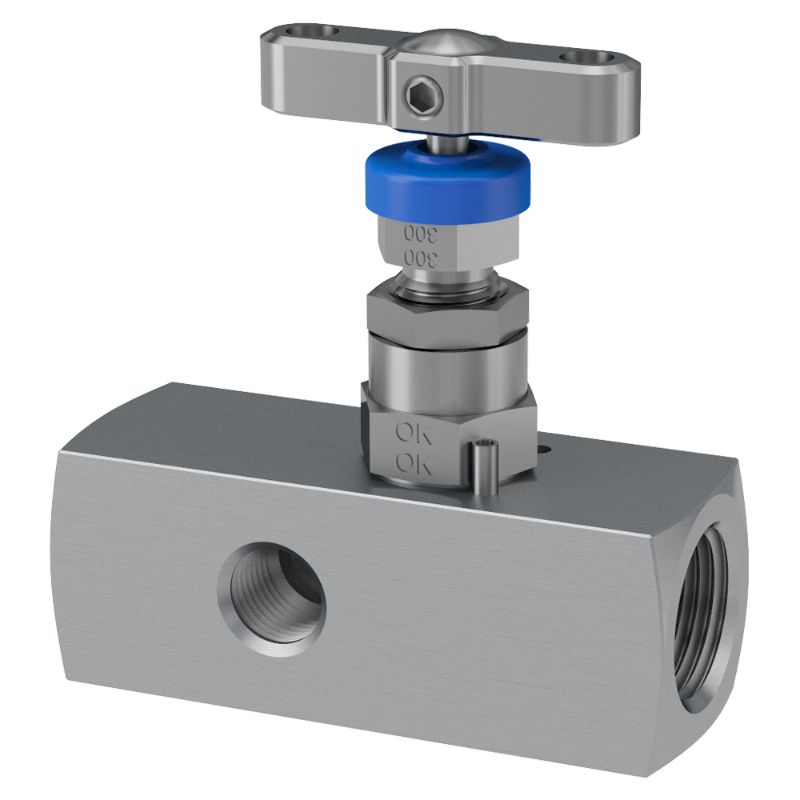

Parker HNVV6MO4FF3 - Gauge Valves with Single Vent Port, Needle Pattern – H Series

Parker's bar stock gauge valves with single vent, designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HNVV6MO4FF3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Division	Instrumentation Products Division
Vent Size	1/4	Seat Material	Metal to Metal
Flow Coefficient	0.35	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld <br/>Seat options: 6mm Bore
Orifice Size	4	For Fluid Type	General Gaseous and Liquid Media
Vent Type	NPT Female	Mounting Option	N/A
Inlet Port Connection Type	NPT Female	Operating Pressure	6000 PSI / 414 BAR
Options	n/a	Meets Certifications	N/A
Inlet Connection Size	1/4 Inch	Outlet Port Connection Type	NPT Female
Body Material	6Mo	Packing Material	Graphite
Additional Options	n/a	Outlet Connection Size	1/4 Inch

Product resources

Literature and Reference Materials

02-0142SE

Autoclave Engineers Technicial/Special Materials Data Catalog (PDF)
