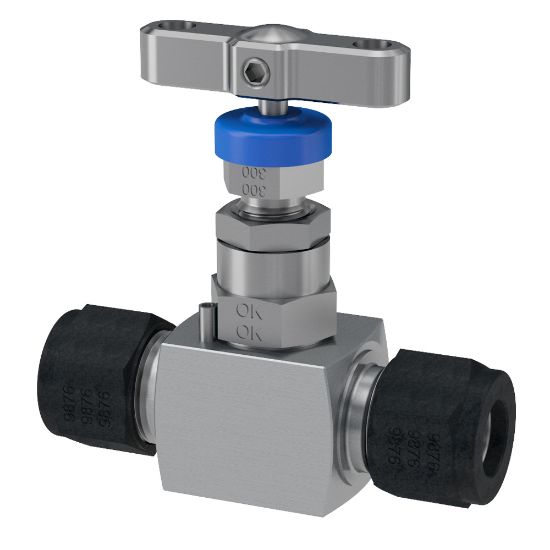

Picture of Parker HNV6MO4FFHP3 - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HNV6MO4FFHP3 - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HNV6MO4FFHP3
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Coefficient0.35Additional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Seat Options: 6 MM bore, Regulating/Metering tip, Stellite
DivisionInstrumentation Products DivisionOrifice Size4 mm
For Fluid TypeGeneral Gaseous and Liquid MediaInlet Port Connection TypeNPT Female
Mounting OptionN/AInlet Connection Size1/4 Inch
Specifications MetN/AOptionsn/a
Seal Material-Outlet Port Connection TypeNPT Female
Flow DirectionStraightBody Material6Mo
Seal Type-Seat MaterialMetal to Metal
Maximum Operating Pressure10000 PSI / 689 BARPacking MaterialGraphite
Outlet Connection Size1/4 Inch
Product resources

Literature and Reference Materials

02-0142SE

Compliance, Certifications & Safety
