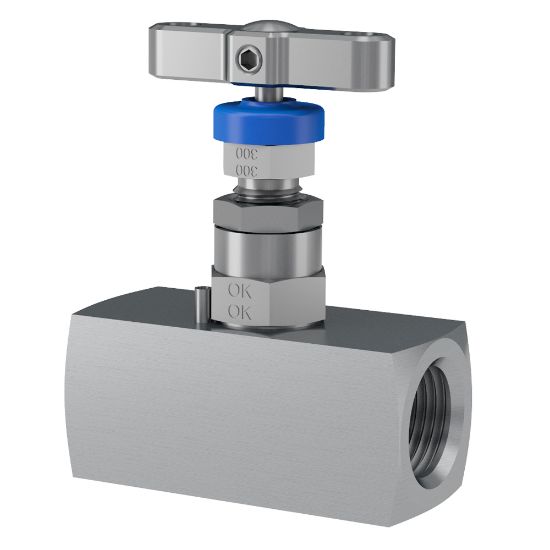

Picture of Parker HNV6254FF - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HNV6254FF - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HNV6254FF
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Coefficient0.35Additional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Seat Options: 6 MM bore, Regulating/Metering tip, Stellite
DivisionInstrumentation Products DivisionOrifice Size4 mm
For Fluid TypeGeneral Gaseous and Liquid MediaInlet Connection Size1/4 Inch
Mounting OptionN/AInlet Port Connection TypeNPT Female
Specifications MetN/AOptionsn/a
Seal Material-Outlet Port Connection TypeNPT Female
Outlet Connection Size1/4 InchSeal Type-
Seat MaterialMetal to MetalFlow DirectionStraight
Packing MaterialPTFEBody MaterialAlloy 625
Maximum Operating Pressure6000 PSI / 414 BAR
Product resources

Literature and Reference Materials

02-0142SE

Compliance, Certifications & Safety
