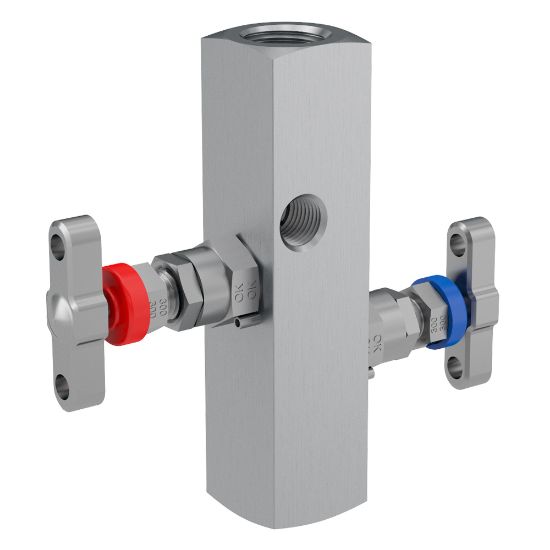

Parker HNLS2VHP3NC - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HNLS2VHP3NC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	Division	Instrumentation Products Division
For Fluid Type	General Gaseous and Liquid Media	Inlet Connection	1/2 Inch NPT Female
Options	n/a	Body Pattern	Long Pattern
Body Material	316 Stainless Steel	Packing Material	Graphite
Operating Pressure	10000 PSI / 689 BAR	Seat Material	Metal to Metal
Vent Size	1/4 Inch NPT Female	Configuration	Isolate and Vent
Additional Options	n/a	Outlet Connection	1/2 Inch NPT Female
Meets Certifications	NACE	Body Type	Straight
Number of Valves	2
