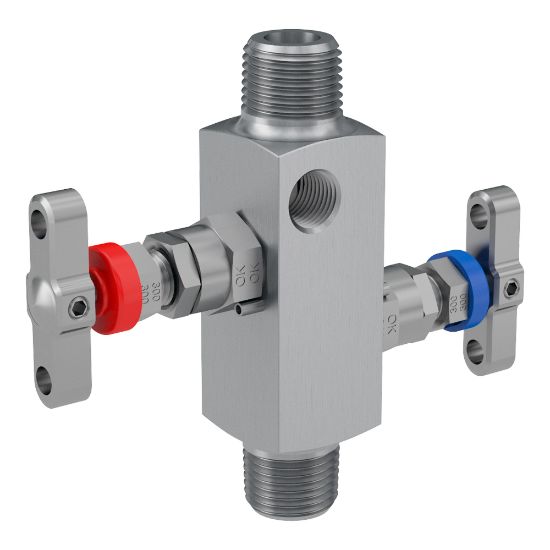

Parker HNLS2V8M8M4FPK - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HNLS2V8M8M4FPK

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Division	Instrumentation Products Division
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts
For Fluid Type	General Gaseous and Liquid Media	Operating Pressure	6000 PSI / 414 BAR
Meets Certifications	N/A	Seat Material	SOFT
Vent Size	1/4 Inch NPT Female	Body Material	316 Stainless Steel
Body Pattern	Long Pattern	Packing Material	PTFE
Options	n/a	Outlet Connection	1/2 Inch NPT Male
Additional Options	PEEK Soft Tip	Configuration	Isolate and Vent
Number of Valves	2	Inlet Connection	1/2 Inch NPT Male
Body Type	Straight
