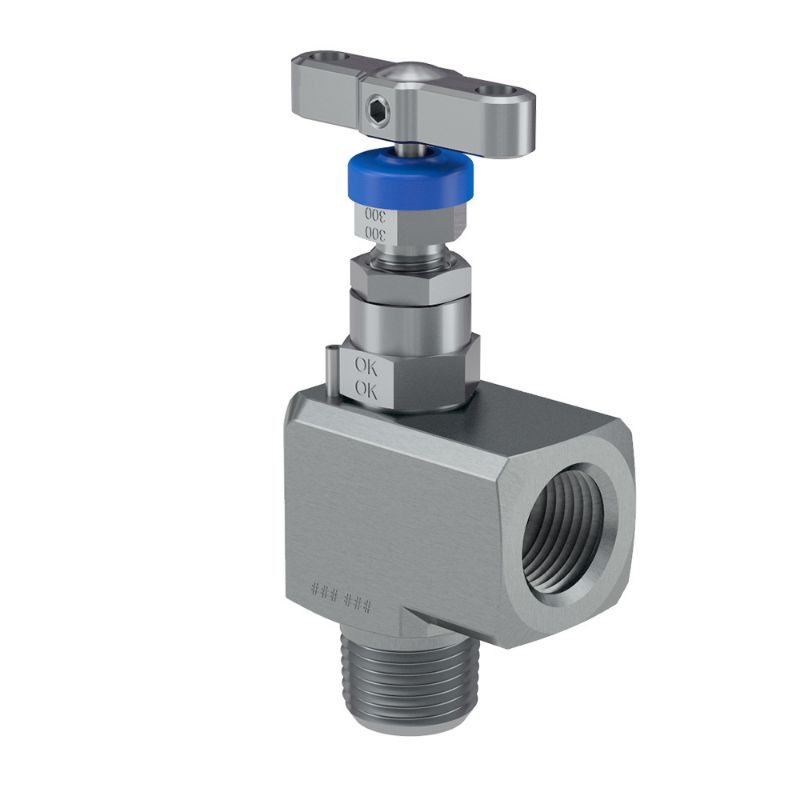

Parker HNAV6MO4M4F - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HNAV6MO4M4F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Orifice Size	4	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Seat Options: 6 MM bore, Regulating/Metering tip, Stellite
Division	Instrumentation Products Division	For Fluid Type	General Gaseous and Liquid Media
Flow Coefficient	0.35	Seat Material	Metal to Metal
Options	n/a	Outlet Connection Size	1/4 Inch
Packing Material	PTFE	Body Material	6Mo
Seal Type	-	Maximum Operating Pressure	6000 PSI / 414 BAR
Specifications Met	N/A	Flow Direction	Angled
Inlet Connection Size	1/4 Inch	Seal Material	-
Mounting Option	N/A	Outlet Port Connection Type	NPT Female
Inlet Port Connection Type	NPT Male

Product resources

Literature and Reference Materials

02-0142SE

Autoclave Engineers Technicial/Special Materials Data Catalog (PDF)

Compliance, Certifications & Safety

FE Class C Certificate - HNV Series Needle Valve (PDF)
