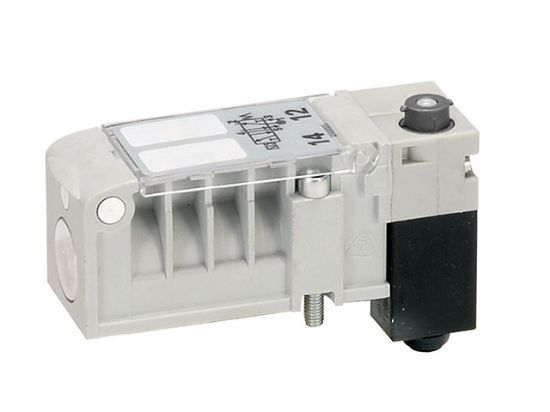

Parker HMQVX2049A - Isys Micro Plug-in Valve

Plug-in valve system with collective wiring or fieldbus electrical connections

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HMQVX2049A

$134.46

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Override Type	Multi-function
UOM	EA	Solenoid Voltage	24 VDC
Pilot Supply	Internal	Pkg Qty	1
CV Factor	0.35	Operator Type	Solenoid
Operator Type Detail	Double	Trade Name	Isys Micro
Pilot Supply	Internal	Parker Group	Automation
CV Factor	0.35	Valve Positions	2-position
Valve Passages	3-way	Operator Type	Solenoid
Offset Return Type	Spring Return	Center Condition	Dual Valve, NC/NO w/Exhaust Check
Solenoid Voltage	24 VDC	Override Type	Multi-function
Parker Division	Pneumatic	Operator Type Detail	Double
Operating Temperature	5°F to 120°F (-15°C to 49°C)	Series	Isys Micro
Supply Pressure Range	40 to 120 PSIG (2.8 to 8.3 bar)	Pneumatic Valve Type	Plug-in Valve
