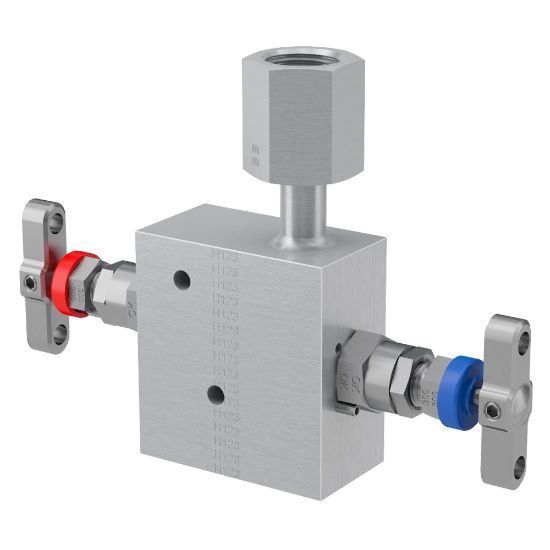

Parker HLWG6MO2V3NC - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HLWG6MO2V3NC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	For Fluid Type	General Gaseous and Liquid Media
Division	Instrumentation Products Division	Inlet Connection	1/2 Inch NPT Female
Outlet Connection	1/2 Inch BSPP Female Swivel Adaptor	Operating Pressure	6000 PSI / 414 BAR
Options	n/a	Body Type	Flat Barstock
Body Pattern	Short Pattern	Body Material	6Mo
Vent Size	1/4 Inch NPT Female	Packing Material	Graphite
Seat Material	Metal to Metal	Configuration	Isolate and Vent
Additional Options	n/a	Meets Certifications	NACE
Number of Valves	2
