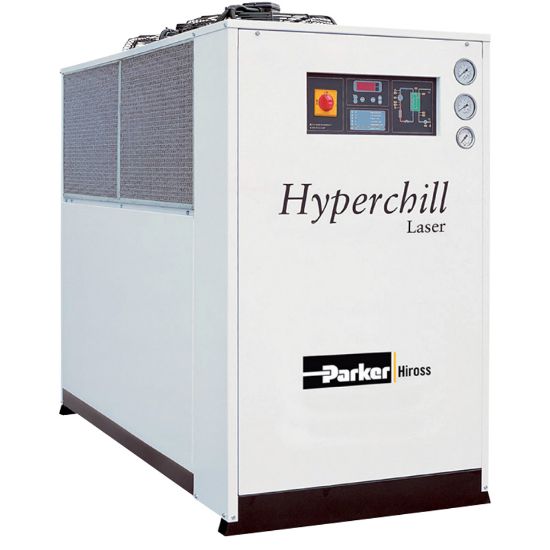

Parker HLS076A4003501P30SSCLA00A - Hyperchill Laser Industrial Process Chiller for Precision Cooling

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HLS076A4003501P30SSCLA00A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Tank Capacity	300	For Fluid Type	Water
Ingress Protection Rating	IP54	Weight	800
Ambient Temperature	45 °C (max.)	Compressor Included	Hermetic Scroll
Division	Gas Separation and Filtration Division EMEA	Product Style	Pressurized Closed Hydraulic Circuit
Port Size	2	Depth	2200
Number of Axial Fans	3	Product Type	Production Process Water Chiller
Noise Level	58	Height	1984
Division	Gas Separation and Filtration Division EMEA	Application	Precision Cooling of Low Viscosity Industrial Cooling Fluids for Laser Marking, Cutting and Welding
Technology	Thermal and Power Management	Product Series	Hyperchill Laser
Port Type	BSPP	Operating Temperature	5 to 30
Industry	Laser and Metal	Refrigerant Type	R407c
Width	898	Specifications Met	PED 97/23/EC
Brand	Hiross	Hydraulic Circuit	Stainless Steel With Tank
Maximum Cooling Capacity	76.0 kW @ 25°C (63°F)	Power Supply Voltage	400V/3Ph/50Hz
Output Water Temperature Range	Close Control +/- 0.5°C	Operating Environment	Low Ambient -10°C (Fan Step Control)
Pump Type	Single Pump 3 bar	Additional Protection Included	With Antifreeze
Cooling Method	Air Cooled / Axial Fans	Water Sensor Option	No Low Water
