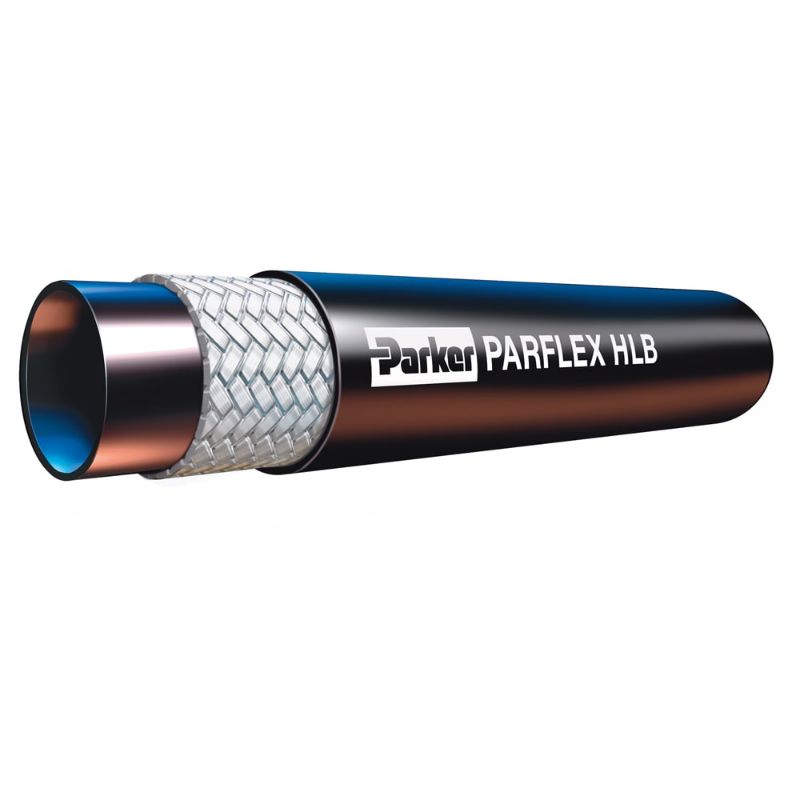

Parker HLB03 - Remote Grease Hose 3000 psi - HLB

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HLB03

$3.16/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	0.410 inch
Inside Diameter	5 mm	Specifications Met	MSHA
Minimum Bend Radius	19 mm	Hose Reinforcement Material	Fiber
Weight	0.08 kg/m	Maximum Operating Pressure	3000 psi
Design Factor	4:1	Minimum Operating Temperature	-40 °C
Application	Transportation	Cover Material	Polyurethane
Maximum Operating Temperature	100 °C	Division	Parflex Division
Media	Petroleum Hydraulic Fluids	Hose Inner Tube Material	Copolyester
Size	-3	Compatible Fitting	CY Series
Hose I.D. (inch)	3/16
