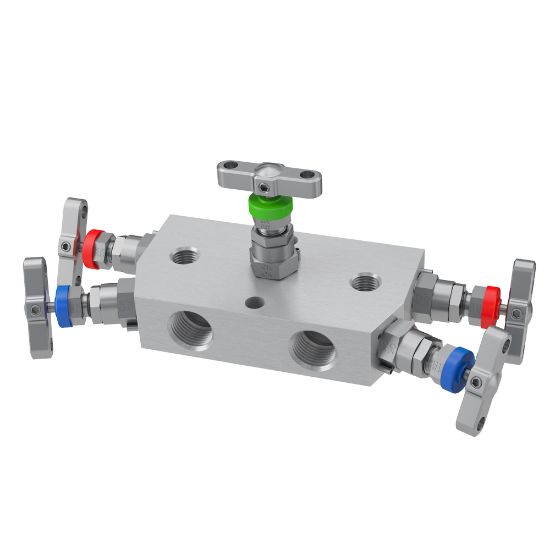

Parker HL6MO5MNC - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HL6MO5MNC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Instrumentation Products Division	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	For Fluid Type	General Gaseous and Liquid Media
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	Additional Options	n/a
Outlet Connection	1/2 Inch NPT Female	Number of Valves	5
Vent Size	1/4 Inch NPT Female	Packing Material	PTFE
Body Material	6Mo	Meets Certifications	NACE
Body Pattern	Short Pattern	Body Type	Flat Barstock
Configuration	Double Isolate and Equalise with Vents	Inlet Connection	1/2 Inch NPT Female
Seat Material	Metal to Metal	Operating Pressure	6000 PSI / 414 BAR
Options	n/a
