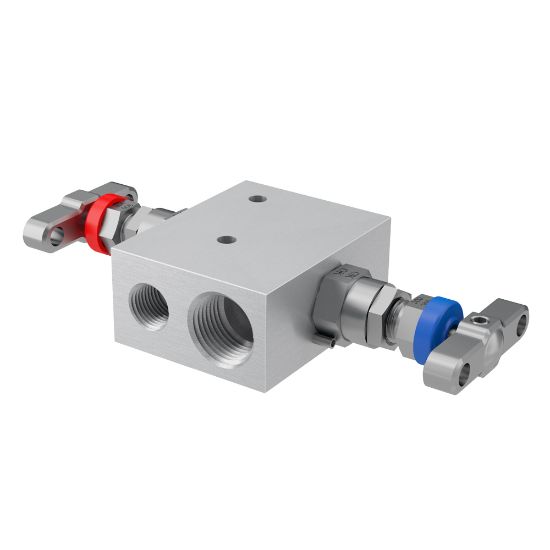

Parker HL6MO2V3P - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HL6MO2V3P

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Division	Instrumentation Products Division	Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts
For Fluid Type	General Gaseous and Liquid Media	Options	Blank Plug
Configuration	Isolate and Vent	Meets Certifications	N/A
Body Type	Flat Barstock	Body Pattern	Short Pattern
Inlet Connection	1/2 Inch NPT Female	Vent Size	1/4 Inch NPT Female
Packing Material	Graphite	Seat Material	Metal to Metal
Operating Pressure	6000 PSI / 414 BAR	Outlet Connection	1/2 Inch NPT Female
Number of Valves	2	Additional Options	n/a
Body Material	6Mo
