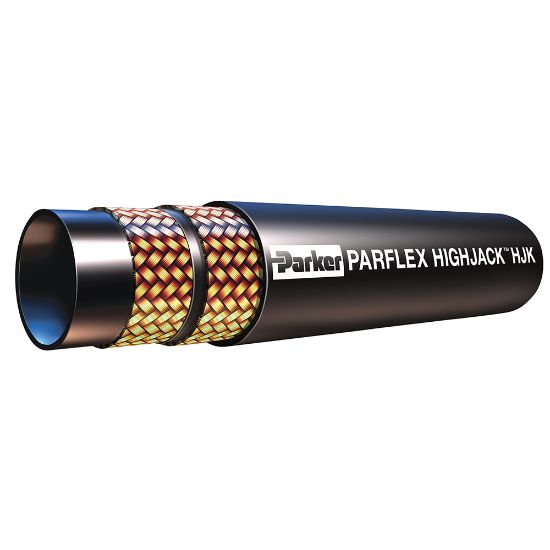

Parker HJK04 - OBSOLETE: Highjack® Jackline Hybrid Hose - HJK

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HJK04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.27	Division	Parflex Division
Hose Inner Tube Material	Copolyester	Design Factor	4:1
Application	High Pressure Jackline	Maximum Operating Temperature	150
Media	Petroleum Hydraulic Fluids	Cover Material	Synthetic Rubber
Minimum Operating Temperature	-40	Size	-4
Maximum Operating Pressure	10000	Compatible Fitting	HY Series
Hose Reinforcement Material	2 Braids of High Tensile Wire	Specifications Met	SAE J100
Inside Diameter	1/4	Outside Diameter	0.620
Minimum Bend Radius	102	Hose I.D. (inch)	1/4

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660 (PDF)
