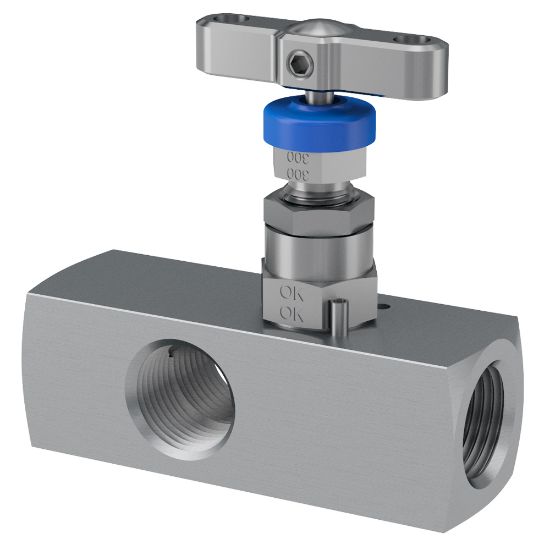

Picture of Parker HGV6MO8FF3PBVBMNC - Multi-port Gauge Valves, Needle pattern – H series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HGV6MO8FF3PBVBMNC - Multi-port Gauge Valves, Needle pattern – H series

Parker's bar stock multi-port gauge valves with two side ports designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HGV6MO8FF3PBVBMNC
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionInstrumentation Products DivisionOperating TemperaturePTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
For Fluid TypeGeneral Gaseous and Liquid MediaSeat MaterialMetal to Metal
Flow Coefficient0.35Product TypeGauge Valve
Orifice Size4Additional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Socket Weld, Inverted and PTFree connectTM<br/>Seat options: R
Meets CertificationsNACEOptionsBlank Plug and Bleed Plug
Inlet Port Connection TypeNPT FemaleMounting OptionBase Mount
Outlet Connection Size1/2 InchOperating Pressure6000 PSI / 414 BAR
Outlet Port Connection TypeNPT Female x 3Packing MaterialGraphite
Body Material6MoInlet Connection Size1/2 Inch
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

02-0142SE
