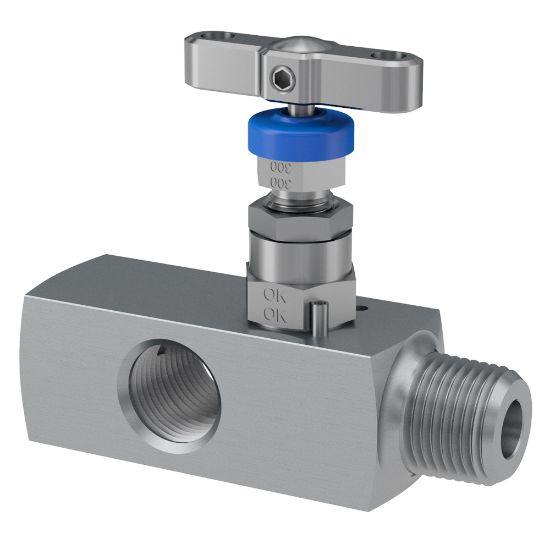

Picture of Parker HGV62512M8F - Multi-port Gauge Valves, Needle pattern – H series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HGV62512M8F - Multi-port Gauge Valves, Needle pattern – H series

Parker's bar stock multi-port gauge valves with two side ports designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HGV62512M8F
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Coefficient0.35Seat MaterialMetal to Metal
Orifice Size4Product TypeGauge Valve
For Fluid TypeGeneral Gaseous and Liquid MediaAdditional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Socket Weld, Inverted and PTFree connectTM<br/>Seat options: R
DivisionInstrumentation Products DivisionOperating TemperaturePTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Meets CertificationsN/AOperating Pressure6000 PSI / 414 BAR
Inlet Port Connection TypeNPT MaleMounting OptionN/A
Packing MaterialPTFEInlet Connection Size3/4 Inch
Optionsn/aOutlet Port Connection TypeNPT Female x 3
Outlet Connection Size1/2 InchBody MaterialAlloy 625
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

02-0142SE
