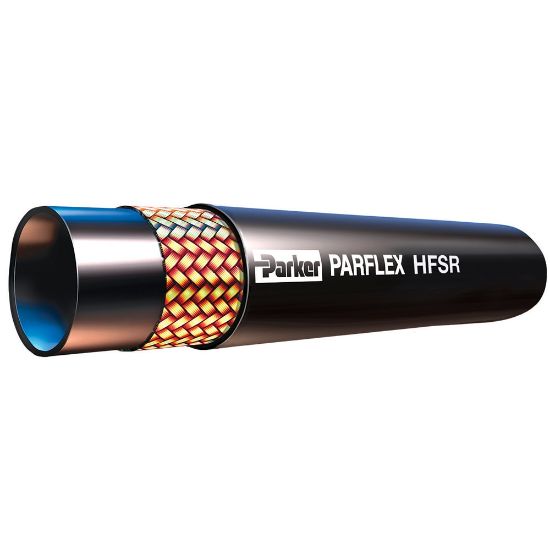

Parker HFSR08-500 - OBSOLETE: High Performance HFSR Rubber-Covered Hose

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HFSR08-500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.31 kg/m	Minimum Bend Radius	76 mm
Division	Parflex Division	Media	Petroleum Hydraulic Fluids
Outside Diameter	18.8 mm	Cover Material	Synthetic Rubber
Specifications Met	SAE J517 and 100R1, Type AT	Hose Reinforcement Material	Braid of High Tensile Steel Wire
Maximum Operating Pressure	172 bar	Minimum Operating Temperature	-40 °C
Size	-8	Compatible Fitting	56 Series
Application	Paving and Road Maintenance	Hose Inner Tube Material	Copolyester
Design Factor	4:1	Inside Diameter	1/2 inch
Cover Structure	Smooth	Maximum Operating Temperature	250 °F
Hose Length	500	Hose I.D. (inch)	1/2
