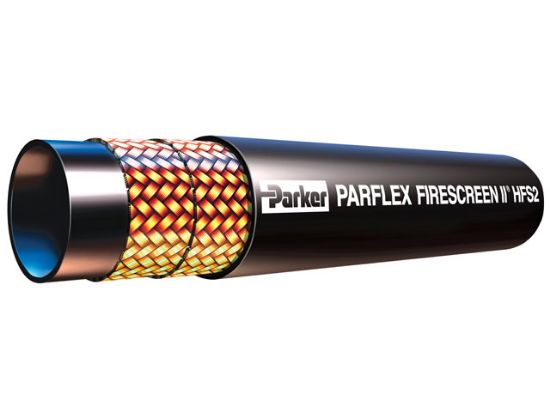

Parker HFS06 - HFS Series

High Pressure Thermoplastic Hybrid Hydraulic Hose

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HFS06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Material	Thermoplastic	Working Pressure	2500 PSI (170 bar)
Pkg Qty/UOM	250 FT	Inner Diameter	0.375 Inch
UOM	FT	Mating Fitting Series	HY
Pkg Qty	250	Parker Group	Fluid Connector
Hose Pressure Range	High	Distinct Properties	Constant Pressure Hybrid 3000 PSI
Inner Diameter	0.375 Inch	Series	HFS
Inch/Metric	Inch	Parker Division	Parflex
Application	Hydraulic	Specification	SAE 100R1AT
Mating Fitting Series	HY	Inner Diameter Inch/mm	Inch
Working Pressure Range	2000 to 2999 PSI ( 138 to 207 bar)	Material	Thermoplastic
