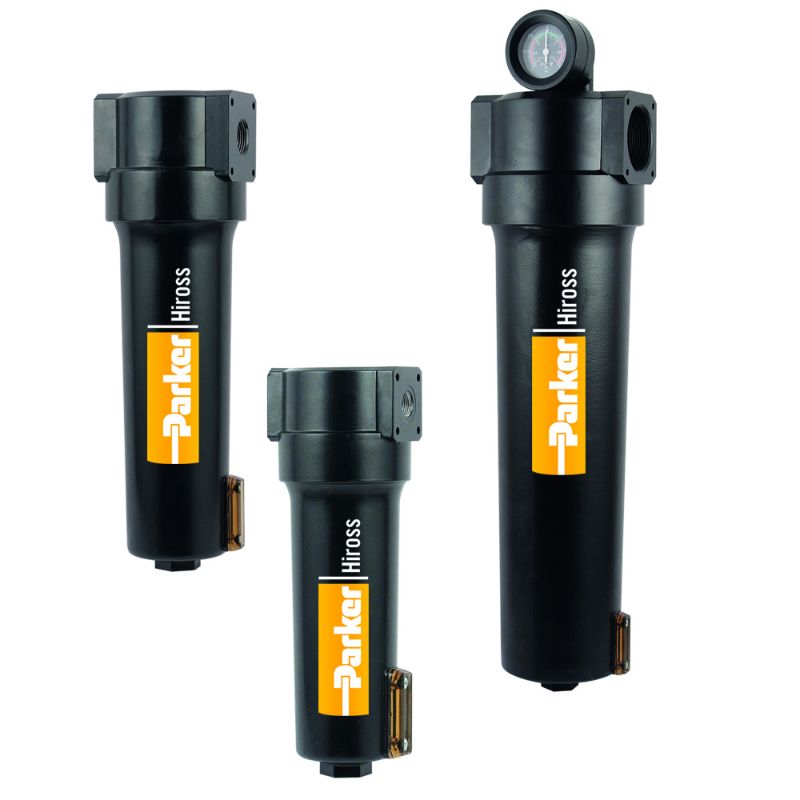

Parker HFN005DWD - Hyperfilter Compressed Air Filters (For Pressures Up To 16 Bar G)

Die cast aluminium coalescing, dry particulate and oil vapour removal compressed air filters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HFN005DWD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Element	Q005-ELZ	Maximum Operating Temperature	149 °F
Element Change Interval	12 Months	Minimum Operating Pressure	1 barg
Maximum Operating Pressure	16 barg	Minimum Operating Temperature	2 °C
Application	Filtration of compressed air and nitrogen gas	Height	168 mm
Weight	0.6 kg	Width	69 mm
Maximum Flow Rate	18.7 CFM	Residual Oil Content	N/A
Drain	Manual Drain	Brand	Hiross
Division	Gas Separation and Filtration Division EMEA	Port Type	BSPP
Filter Element Type	Dry Particulate	Maximum Flow Rate	31.8 m³/hour
Micron Rating	Down to 3 micron	Port Size	¼ inch
