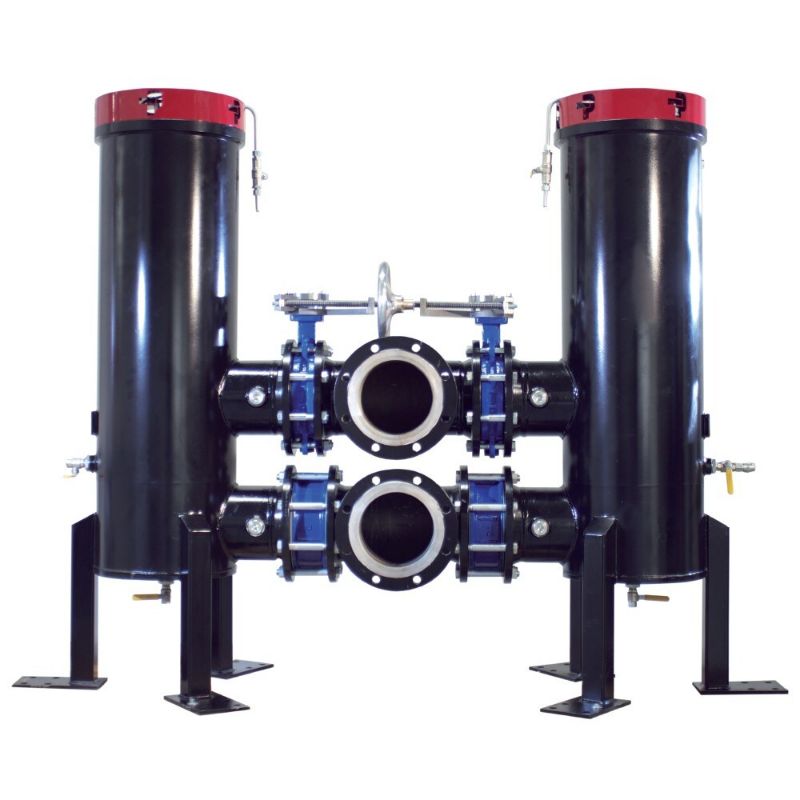

Parker HFD3310QEBM3KD200U1 - Low Pressure In-Line Single and Duplex Filter - HFS-HFD Series

The HFS and HFD series is a range of high flow single and duplex Filters for Lubrication oil, Fuel and Coolant filtration.
Maximum flow 11200 l/min. Maximum pressure 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HFD3310QEBM3KD200U1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Bypass Valve Pressure Rating	3.5	Seal Material	Nitrile
Flow Rate	4200	Mounting Type	Inline
Operating Temperature	0 to 100	Pressure Rating	10
Housing Material	Steel	Division	Hydraulic & Industrial Process Filtration Division EMEA
Options	Butterfly + check valves. With bypass *	Flow Capacity (l/min)	4200 *
Port Connection Type	DN200-PN10 Flanges *	Filter Element	10QE Ecoglass *
Filter Type	Duplex filter	Indicator Type	Visual *
