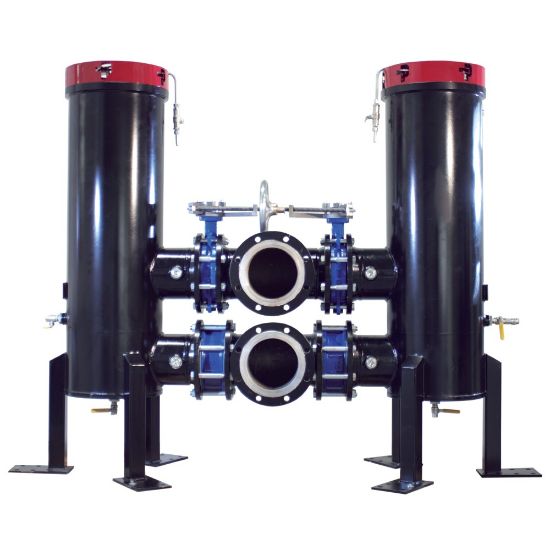

Parker HFD1310QEBM3KD125U1 - Low Pressure In-Line Single and Duplex Filter - HFS-HFD Series

The HFS and HFD series is a range of high flow single and duplex Filters for Lubrication oil, Fuel and Coolant filtration.
Maximum flow 11200 l/min. Maximum pressure 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HFD1310QEBM3KD125U1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Rating	10	Seal Material	Nitrile
Bypass Valve Pressure Rating	3.5	Flow Rate	1400
Division	Hydraulic & Industrial Process Filtration Division EMEA	Operating Temperature	0 to 100
Mounting Type	Inline	Housing Material	Steel
Filter Type	Duplex filter	Indicator Type	Visual *
Flow Capacity (l/min)	1400 *	Port Connection Type	DN125-PN10 Flanges *
Filter Element	10QE Ecoglass *	Options	Butterfly + check valves. With bypass *
