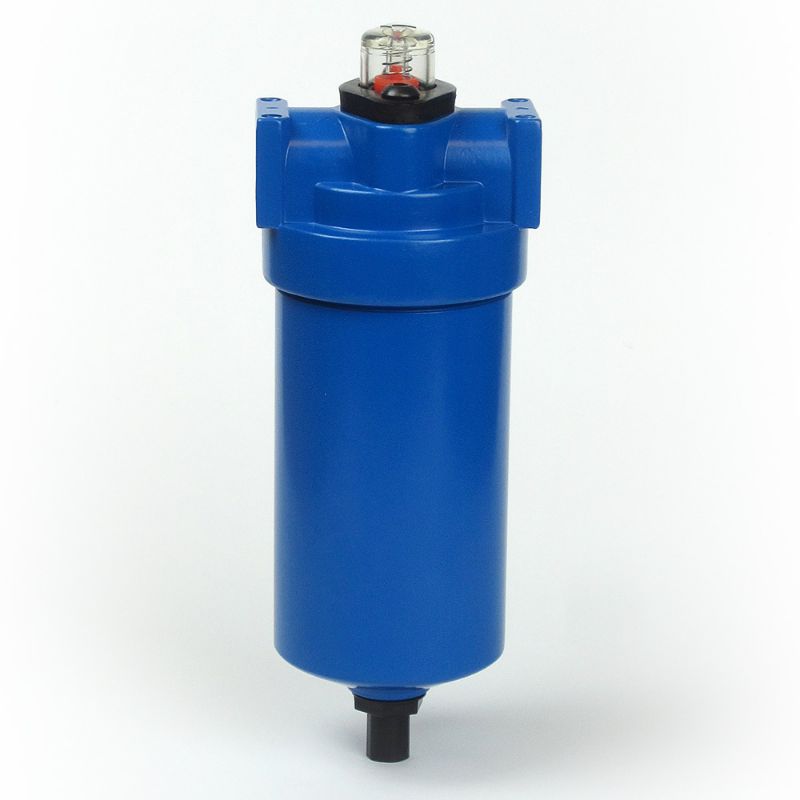

Picture of Parker HF1S-3PUD - Finite H-Series Filter Housings

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HF1S-3PUD - Finite H-Series Filter Housings

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HF1S-3PUD
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Element Removal Clearance5.51 inchWidth3.12 inch
DivisionIndustrial Gas Filtration and Generation DivisionMaximum Operating Temperature175 °F
BrandFiniteHeight250 mm
Maximum Flow Rate112 m3/hour at 7 barWeight0.85 kg
LengthStandardFilter Rating (%)N/A
Thread TypeBSPPElement Seal MaterialUrethane
Port Connection (inch)1/4Filter TypeParticulate
Replacement Element3PU10-025 X 8Micron Rating (µm)3
Pre-Installed Optional AccessoriesDPI IndicatorMaximum Flow Rate (cfm)25 @ 100 PSIG
