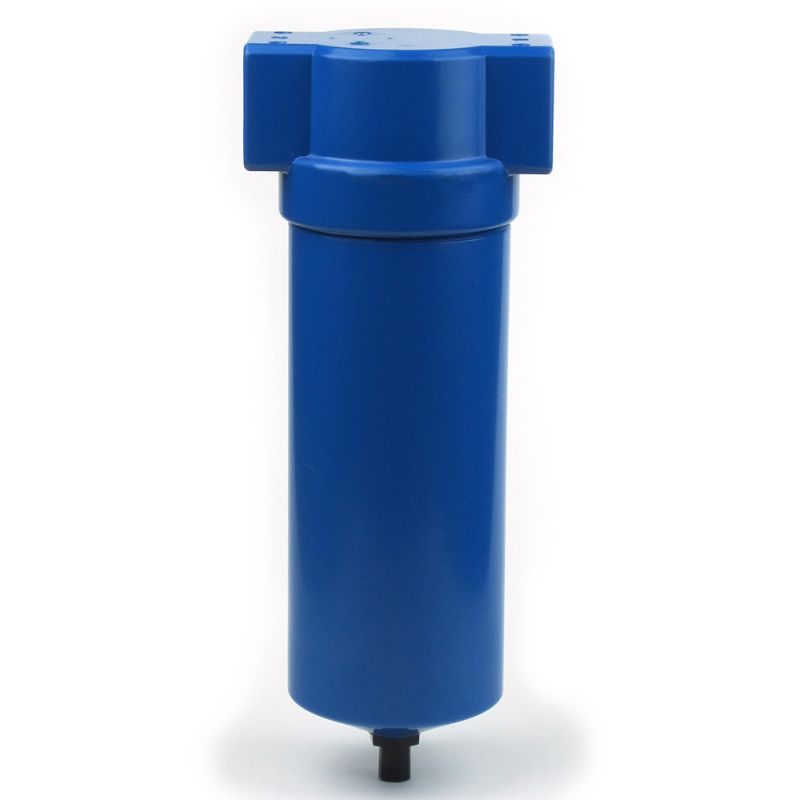

Picture of Parker HF15L-6CA - Finite H-Series Filter Housings

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HF15L-6CA - Finite H-Series Filter Housings

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HF15L-6CA
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Element Removal Clearance5.51 inchMaximum Flow Rate112 m3/hour at 7 bar
Maximum Operating Temperature175 °FBrandFinite
DivisionIndustrial Gas Filtration and Generation DivisionWidth79 mm
Height250 mmWeight0.85 kg
Thread TypeBSPPReplacement Element6C10-050 X 4
Port Connection (inch)3/8Filter Rating (%)99.97
Micron Rating (µm)0.01Pre-Installed Optional AccessoriesAuto Drain
Maximum Flow Rate (cfm)40 @100 PSIGElement Seal MaterialNo End Seal
Filter TypeCoalescerLengthLong
