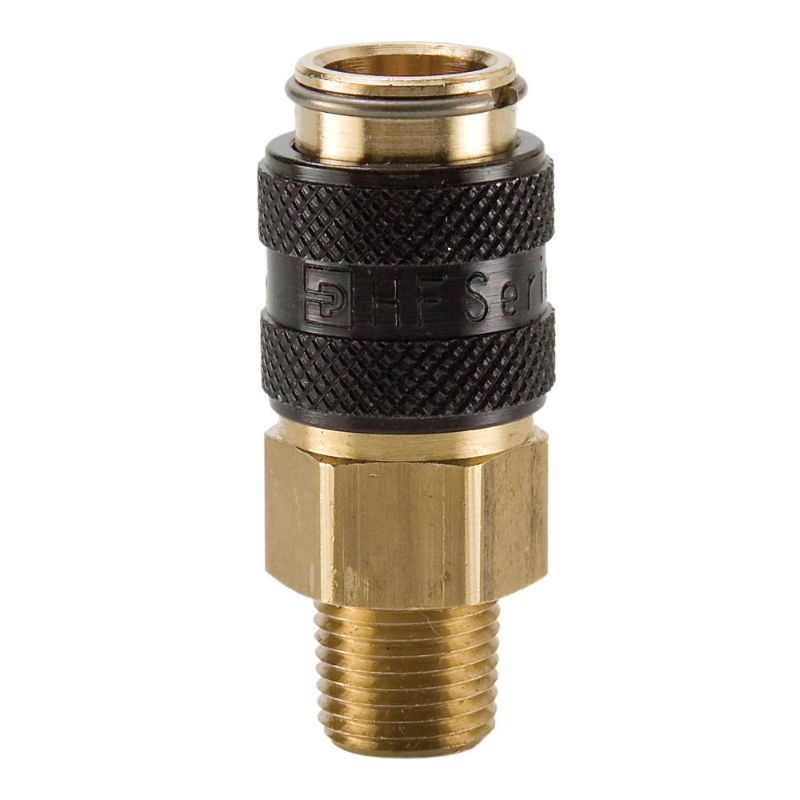

Parker HF-121-4MP - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	41 In Stock

Brand Parker

Part No. HF-121-4MP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Maximum Operating Pressure	250	Plating Type	na
Division	Quick Coupling Division	Valve Type	Tubular
Minimum Operating Temperature	-40	Media	Low pressure fluids and compressed air
Specifications Met	na	Seal Material	Nitrile
Sleeve Type	Push to Connect	Application	Pneumatic
Lock Type	Locking balls	Maximum Operating Temperature	250
Body Material	Brass	Connection Thread Size (inch)	1/4 - 18
Thread Style	Male	Connection Type	NPTF
Body Size (inch)	1/8	Hose I.D. (inch)	na
Body Material	BRASS
