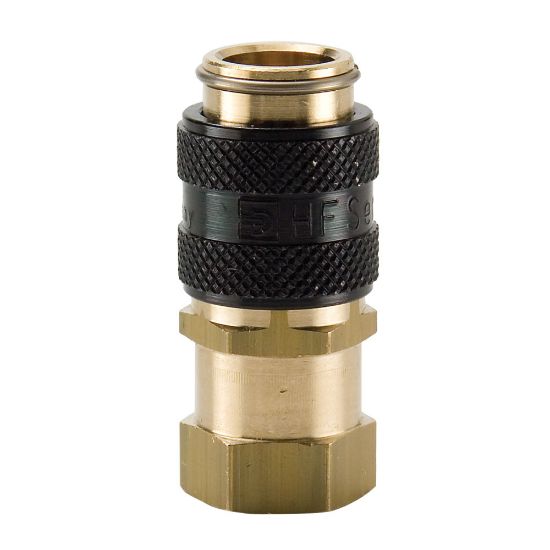

Parker HF-121-4FP - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HF-121-4FP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Sleeve Type	Push to Connect	Application	Pneumatic
Seal Material	Nitrile	Valve Type	Tubular
Maximum Operating Temperature	250	Specifications Met	na
Plating Type	na	Division	Quick Coupling Division
Lock Type	Locking balls	Maximum Operating Pressure	250
Media	Low pressure fluids and compressed air	Minimum Operating Temperature	-40
Coupling Half	Coupler	Body Material	Brass
Body Size (inch)	1/8	Body Material	BRASS
Connection Thread Size (inch)	1/4 - 18	Hose I.D. (inch)	na
Thread Style	Female	Connection Type	NPTF
