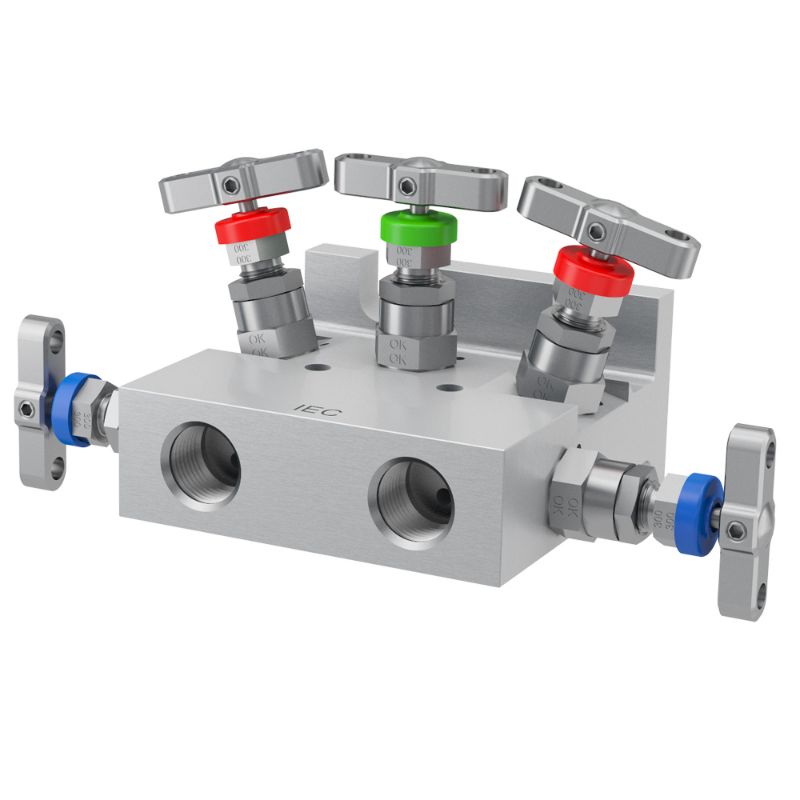

Parker HETS5 - 2, 3 and 5 Valve instrument manifolds, needle pattern, direct mount - H Series

Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HETS5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	Operating Pressure	6000 PSI / 414 BAR
For Fluid Type	General Gaseous and Liquid Media	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection options: BSPP, BSPT, Socket Weld, Inverted and PFree connect<br/>Seat options
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Division	Instrumentation Products Division
Seat Material	Metal to Metal	Vent Size	1/4 Inch NPT Female
Body Material	316 Stainless Steel	Packing Material	PTFE
Options	n/a	Bolt Material	Carbon Steel
Number of Valves	5	Specification	N/A
Outlet Connection	DIN IEC B Flange	Meets Certifications	N/A
Configuration	Double Isolate and Equalise with Vents	Body Type	Extruded T-Section
Inlet Connection	1/2 Inch NPT Female
