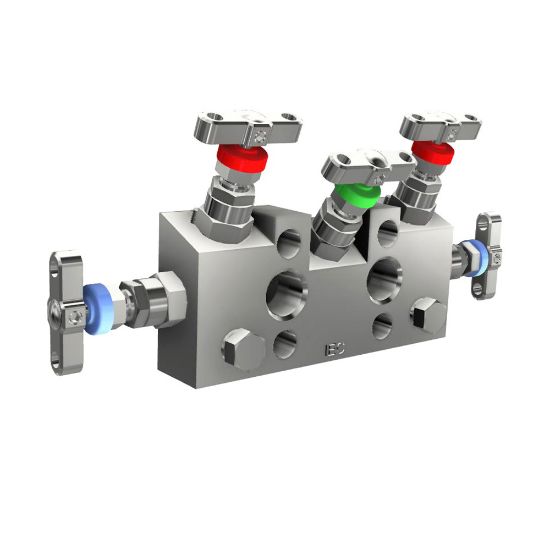

Parker HDS5MAFDP - 2, 3 and 5 Valve instrument manifolds, needle pattern, direct mount - H Series

Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HDS5MAFDP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Pressure	6000 PSI / 414 BAR	Division	Instrumentation Products Division
For Fluid Type	General Gaseous and Liquid Media	Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection options: BSPP, BSPT, Socket Weld, Inverted and PFree connect<br/>Seat options	Bolt Material	Carbon Steel
Inlet Connection	1/2 Inch NPT Female	Configuration	Double Isolate and Inclined Equalise Valve
Options	Blank Plug	Outlet Connection	DIN IEC B Flange
Meets Certifications	N/A	Specification	54 MM CTRS Process Connections
Body Type	Flat Barstock	Body Material	316 Stainless Steel
Vent Size	1/4 Inch NPT Female	Number of Valves	5
Packing Material	PTFE	Additional Options	Front Drain
Seat Material	Metal to Metal
