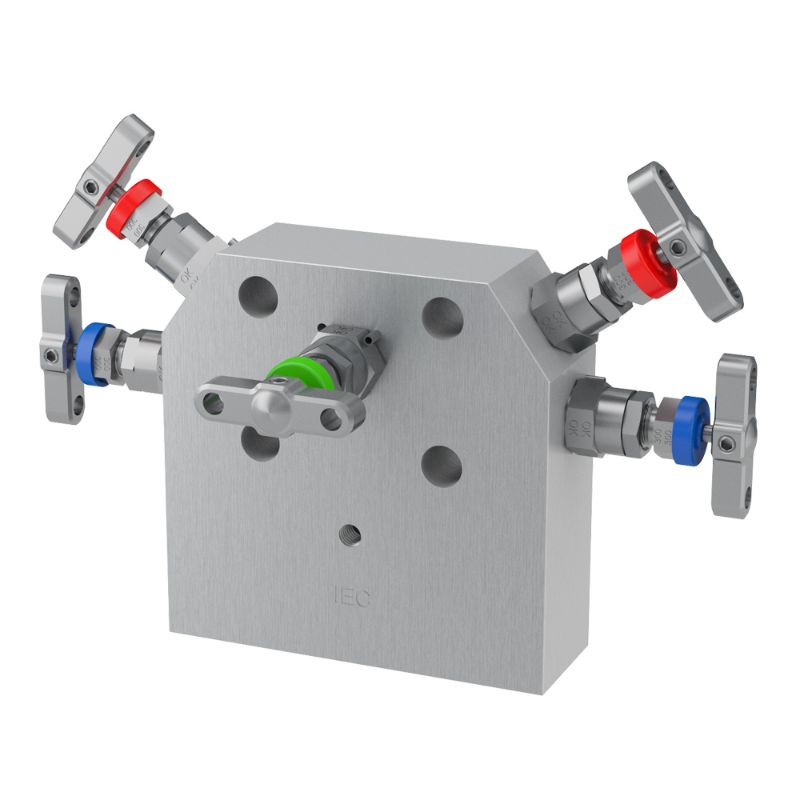

Parker HD6MO5EXTSB3NC - 2, 3 and 5 Valve instrument enclosure manifolds, needle pattern - H Series

Multiple block instrument manifold valves of extended dimensions for installation within instrument protection enclosures. Available in pressure ratings up to 6,000 psi (414 bar) and in a wide range of materials for most service applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO5EXTSB3NC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seat Material	Graphite	Operating Temperature	From -54°C to +538°C, From -65°F to +1000°F
For Fluid Type	General Gaseous and Liquid Media	Operating Pressure	6000 PSI / 414 BAR
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Division	Instrumentation Products Division
Body Type	Extended Flat Barstock	Vent Size	1/4 Inch NPT Female
Body Material	6Mo	Bolt Material	316 Stainless Steel
Options	n/a	Meets Certifications	NACE
Number of Valves	5	Seat Material	Graphite
Outlet Connection	DIN IEC B Flange	Mounting Style	Direct
Configuration	Double Isolate and Equalise with Vents	Inlet Connection	1/2 Inch NPT Female
