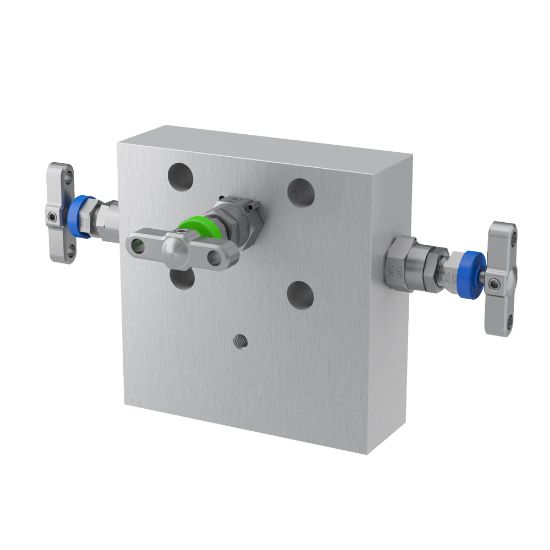

Parker HD6MO3MCPEXTSB3NC - 2, 3 and 5 Valve instrument manifolds, needle pattern, Coplanar™ Style - H Series

Compact and lightweight multiple block instrument manifold valves for direct mounting to Rosemount 2051/3051 Coplanar™ pressure and flow measurement devices. Available in pressure ratings up to 6000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO3MCPEXTSB3NC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Style	Direct	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Division	Instrumentation Products Division	For Fluid Type	General Gaseous and Liquid Media
Operating Pressure	6000 PSI / 414 BAR	Additional Options	Contact Parker for the following options: <br/>Instrument Bolt Options: 3" Long Carbon Steel, 3" Long Stainless Steel<br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection o
Seat Material	Metal to Metal	Seat Material	Metal to Metal
Number of Valves	3	Options	n/a
Bolt Material	316 Stainless Steel	Additional Options	n/a
Meets Certifications	NACE	Body Material	6Mo
Vent Size	1/4 Inch NPT Female	Outlet Connection	2051/3051 Coplanar Flange
Seal Material	Graphite	Configuration	Double Isolate and Equalise
Inlet Connection	1/2 Inch NPT Female	Body Type	Extended Flat Barstock
