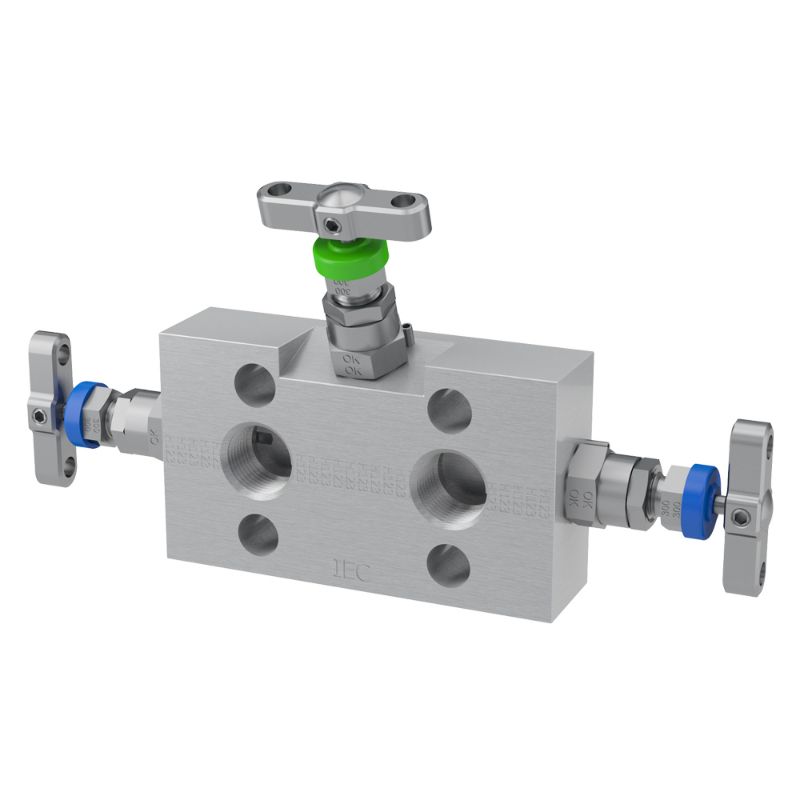

Parker HD6MO3M3NC - 2, 3 and 5 Valve instrument manifolds, needle pattern, direct mount - H Series

Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO3M3NC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection options: BSPP, BSPT, Socket Weld, Inverted and PFree connect<br/>Seat options	For Fluid Type	General Gaseous and Liquid Media
Operating Pressure	6000 PSI / 414 BAR	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Division	Instrumentation Products Division	Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts
Vent Size	1/4 Inch NPT Female	Packing Material	Graphite
Body Material	6Mo	Seat Material	Metal to Metal
Number of Valves	3	Configuration	Double Isolate and Equalise
Meets Certifications	NACE	Bolt Material	Carbon Steel
Additional Options	n/a	Inlet Connection	1/2 Inch NPT Female
Specification	54 MM CTRS Process Connections	Options	n/a
Outlet Connection	DIN IEC B Flange	Body Type	Flat Barstock
