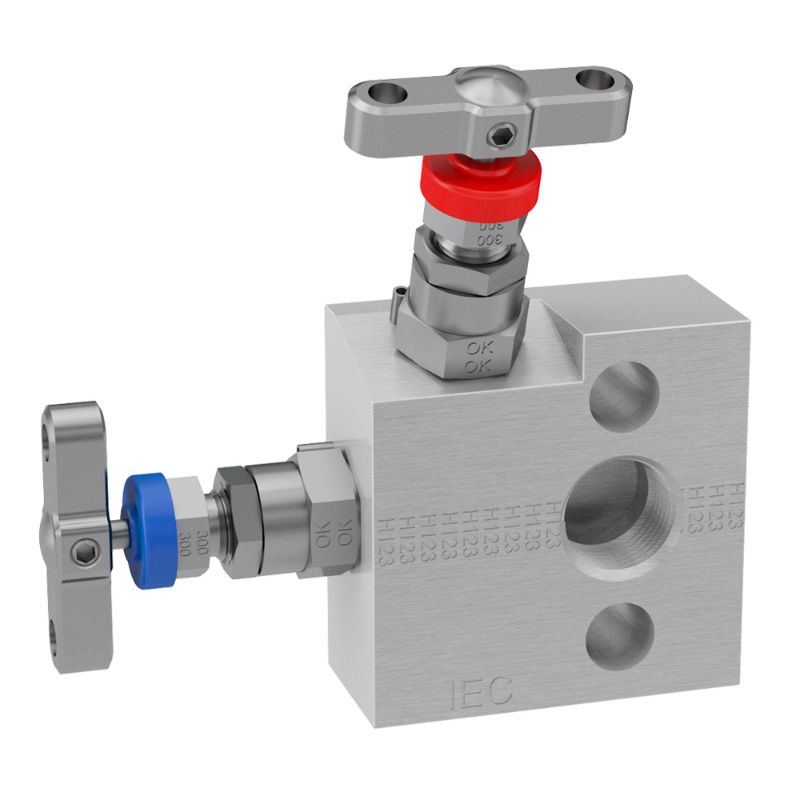

Parker HD6MO2MSB3 - 2, 3 and 5 Valve instrument manifolds, needle pattern, direct mount - H Series

Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO2MSB3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection options: BSPP, BSPT, Socket Weld, Inverted and PFree connect<br/>Seat options
Division	Instrumentation Products Division	Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F
Operating Pressure	6000 PSI / 414 BAR	For Fluid Type	General Gaseous and Liquid Media
Bolt Material	316 Stainless Steel	Seat Material	Metal to Metal
Options	n/a	Outlet Connection	DIN IEC B Flange
Meets Certifications	N/A	Vent Size	1/4 Inch NPT Female
Packing Material	Graphite	Body Material	6Mo
Number of Valves	2	Configuration	Isolate and Vent
Additional Options	n/a	Body Type	Flat Barstock
Specification	N/A	Inlet Connection	1/2 Inch NPT Female
