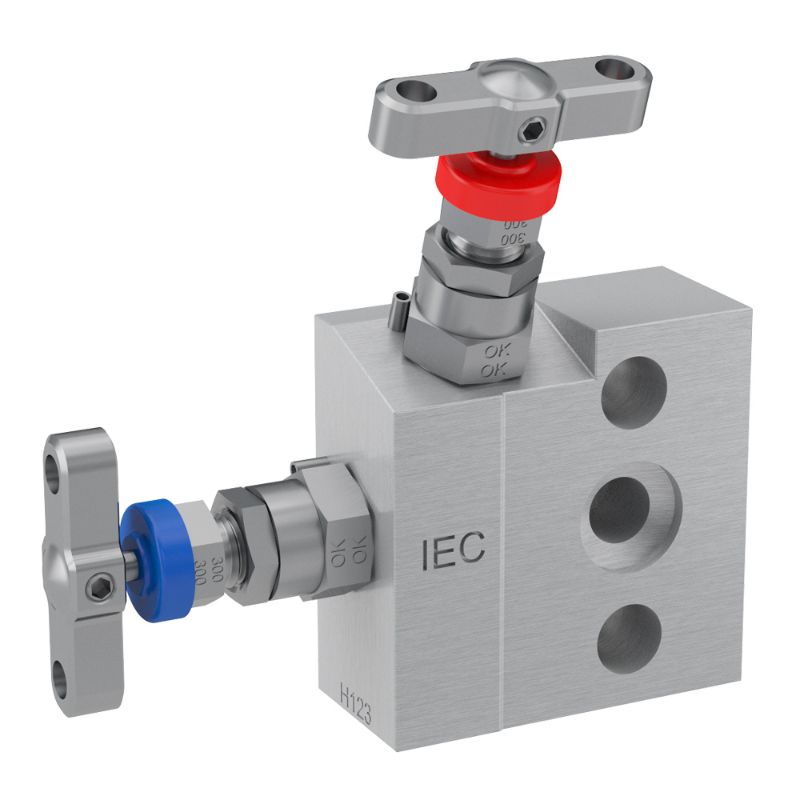

Parker HD6MO2MFFSB3NC - 2, 3 and 5 Valve instrument manifolds, needle pattern, direct mount - H Series

Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO2MFFSB3NC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection options: BSPP, BSPT, Socket Weld, Inverted and PFree connect<br/>Seat options	Division	Instrumentation Products Division
For Fluid Type	General Gaseous and Liquid Media	Operating Pressure	6000 PSI / 414 BAR
Specification	N/A	Options	n/a
Outlet Connection	DIN IEC B Flange	Bolt Material	316 Stainless Steel
Body Type	Flat Barstock	Body Material	6Mo
Vent Size	1/4 Inch NPT Female	Packing Material	Graphite
Seat Material	Metal to Metal	Configuration	Isolate and Vent
Additional Options	n/a	Meets Certifications	NACE
Inlet Connection	DIN IEC	Number of Valves	2
