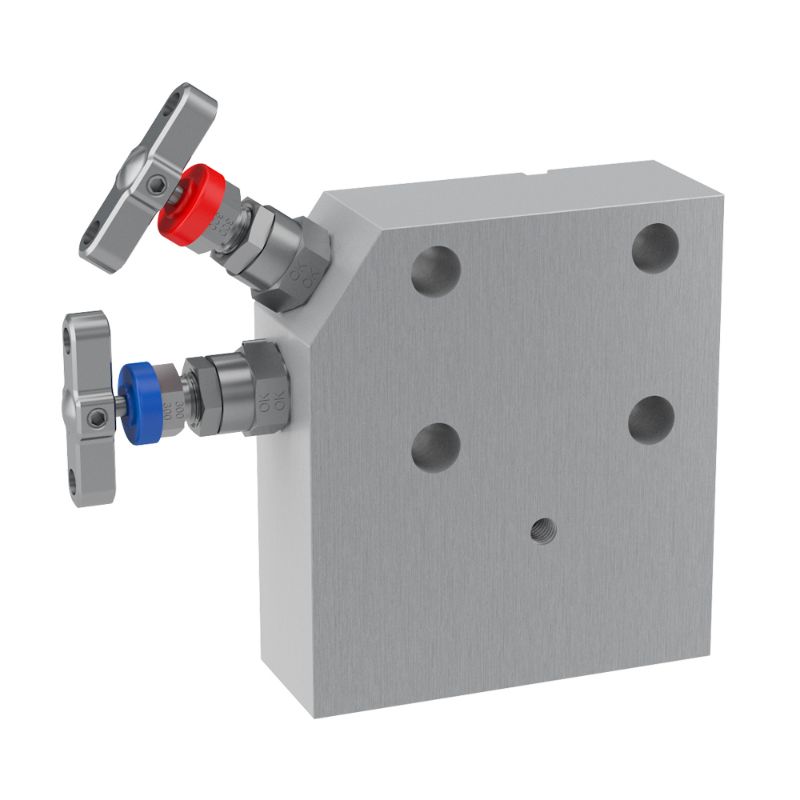

Parker HD6MO2MCPEXT3 - 2, 3 and 5 Valve instrument manifolds, needle pattern, Coplanar™ Style - H Series

Compact and lightweight multiple block instrument manifold valves for direct mounting to Rosemount 2051/3051 Coplanar™ pressure and flow measurement devices. Available in pressure ratings up to 6000 psi (414 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO2MCPEXT3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Style	Direct	For Fluid Type	General Gaseous and Liquid Media
Operating Pressure	6000 PSI / 414 BAR	Division	Instrumentation Products Division
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Additional Options	Contact Parker for the following options: <br/>Instrument Bolt Options: 3" Long Carbon Steel, 3" Long Stainless Steel<br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Inlet Connection o
Seat Material	Metal to Metal	Vent Size	1/4 Inch NPT Female
Body Material	6Mo	Seat Material	Metal to Metal
Configuration	Isolate and Vent	Seal Material	Graphite
Bolt Material	Carbon Steel	Number of Valves	2
Additional Options	n/a	Inlet Connection	1/2 Inch NPT Female
Body Type	Extended Flat Barstock	Outlet Connection	2051/3051 Coplanar Flange
Meets Certifications	N/A	Options	n/a
