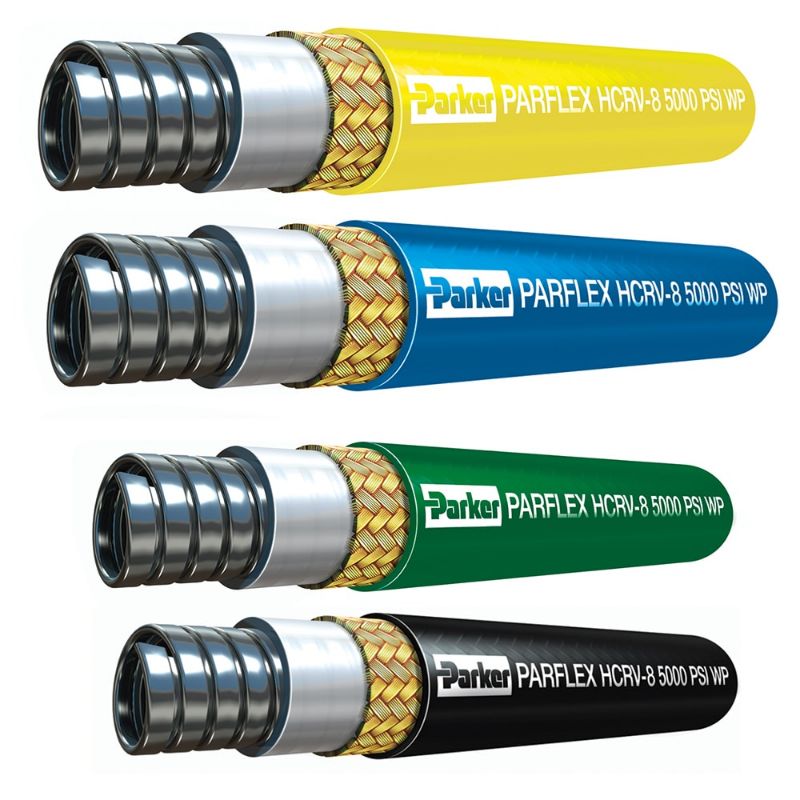

Parker HCRV-16-BLU - High Collapse Resistant Hose - HCR

Parker High Pressure Collapse Resistant HCR hose is specifically designed to serve the oil & gas market in subsea hydraulics. Its state-of-the-art construction provides a minimum crush resistance of 6,600 psi external pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HCRV-16-BLU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Notes	Parflex offers an unlimited number of hose assembly configurations. Please contact the Division for part numbers and/or ordering assistance.	Design Factor	4
Inside Diameter	25 mm	Application	Subsea BOP Stack
Maximum Operating Pressure	34.5 MPa	Minimum Operating Temperature	-40 °C
Weight	2.15 kg/m	Outside Diameter	46.4 mm
Division	Parflex Division	Collapse Pressure	6600 psi
Maximum Operating Temperature	131 °F	Specifications Met	API 17E
Hose Reinforcement Material	Braid of Aramid Fiber	Hose Inner Tube Material	Polyamide 11 with 316L SS Carcass
Size	-16	Cover Material	Polyurethane
Product Style	Subsea BOP Hose	Minimum Bend Radius	11.8 inch
Compatible Fitting	HV Series	Media	Petroleum Hydraulic Fluids
Industry	Oil & Gas	Hose I.D. (inch)	1
