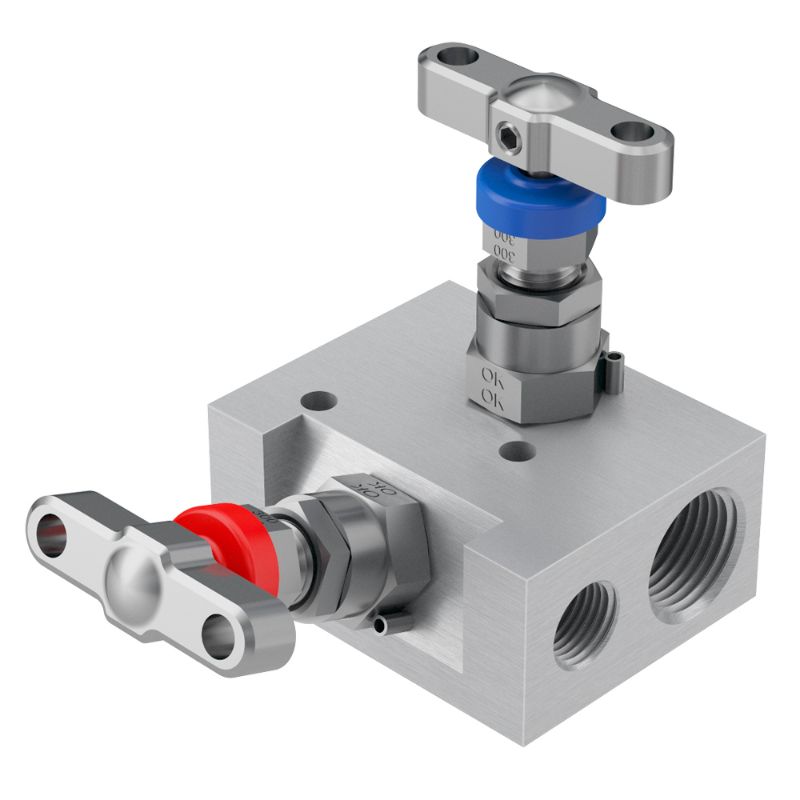

Parker HAL6MO2V - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HAL6MO2V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Division	Instrumentation Products Division
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts
For Fluid Type	General Gaseous and Liquid Media	Inlet Connection	1/2 Inch NPT Female
Meets Certifications	N/A	Operating Pressure	6000 PSI / 414 BAR
Body Pattern	Short Pattern	Body Type	Flat Barstock
Packing Material	PTFE	Body Material	6Mo
Configuration	Isolate and Angled Vent	Vent Size	1/4 Inch NPT Female
Seat Material	Metal to Metal	Options	n/a
Additional Options	n/a	Outlet Connection	1/2 Inch NPT Female
Number of Valves	2
